TNR Model HD-DD 3025

This high-speed, high-performance door system is particularly well suited for applications where high door speeds are required in openings that also experience very high traffic. Vehicle impacts are quickly reset, keeping traffic flowing in these demanding applications.

Eliminating the counterbalance springs makes these TNR rubber doors extremely reliable in high-cycle environments.

Model HD-DD 3025

Chain Drive System

Features and Benefits:

• The HD SERIES chain drive model HD-CD 3025 uses a high-performance helical gearhead operator and chain drive to open the door at up to 24 inches per second.
• A programmable PLC and VFD control this drive system with a soft start and soft stop that provides smooth, quiet operation, reduced wear-and-tear and long life.
• The versatile PLC controller allows quickly adding a wide range of activation and safety devices often required in high-traffic door applications.

Typical Applications

• Parking & Automotive
• Logistics,  Distribution & Transportation

Warranty

The chain drive springless design enables us to include our 5 and 2 warranty, ensuring reliable operation with:

• Five years or 1,000,000 cycles on operators with VFD
• Two years on all other mechanical components
• Two years on electrical components

TNR Model HD-DD 3050

TNR rubber doors with chain drive and spring counterbalance outperform all other door systems in the most rugged and abusive environments. These extremely reliable doors are most valuable in the typically harsh environments of heavy industrial applications.

These industries often require large doorways to accommodate large equipment, whereas the HD SERIES is ideal for filling the void left by other high-performance doors.

Features and Benefits:

• A part of the HD SERIES chain drive sprung product offering is the high-speed HD-SD 3050 model, equipped with a high-performance helical gearhead operator to open the door at up to 48 inches per second.
• The HD-SD 3050 operator is controlled by a custom programmable PLC with a variable frequency drive (VFD) in a NEMA 4 enclosure for precision control and durability.
• This model is counterbalanced by standard springs rated for 100,000 or 50,000 cycles, depending on the door size. Upgrades for 200,000 cycles in higher traffic applications are available.

Warranty

The chain drive sprung design enables us to include our 5 and 2 warranty, ensuring reliable and dependable operation with:

• 5 years or 1,000,000 cycles on operators with VFD
• 2 years on all other mechanical components
• 2 years on electrical components

Model HD-SD 3050

High-Speed, Chain Drive, Sprung Drive System

Typical Applications

• Mining & Industrial
• Distrubution & Transportation

TNR Model HD-DD 3065 and Model HD-DD 2565

Direct Drive System (Hoods Optional)

A springless direct drive system on a TNR rubber door provides a system that is simple to install, low maintenance, and performs well in rugged environments where high-speed operation is a must. Applications such as transit, airport, and rail maintenance shops are ideal.

A variable frequency drive (VFD) provides a soft start and soft stop, ensuring smooth operation and extended life of the mechanical system.

Direct Drive models include two models that meet a wide range of needs and budgets:

• The HD-DD 3065 rubber door offers a complete heavy-duty design for harsh, demanding environments.
• The HD-HD 2565 hybrid door offers a hybrid alternative of a lighter rubber curtain or 88 oz fabric curtain.
• These two models provide speed and durability for less demanding environments while maintaining all TNR’s direct drive system benefits.

Typical Applications:

• Logistics, Distribution & Transportation
• Food & Beverage

Warranty:

The direct drive design enables us to include our 5 and 2 warranty, ensuring reliable and dependable operation with:

• 5 years or 1,000,000 cycles on operators with VFD
• 2 years on all other mechanical components
• 2 years on electrical components

Model Chillfast

High-Speed Freezer Door

Typical Applications

• Food & Beverage Processing
• Distribution & Transportation
• Cold Storage

Model Chillfast Overview

The CHILLFAST insulated high speed roll-up door system can sustain temperature ranges suitable for cold rooms, chill rooms, and freezers.
This high speed door system minimizes temperature losses in cold spaces by reducing the time the door is open, providing substantial savings in energy consumption.

Reduces ice build-up on components and walk-through areas. Optional heated air curtain provides further safety, efficiency, and energy savings. The ChillFast provides fast, quiet, reliable operation. Door speed up to 108 inches per second.

Features and Benefits:

• High speed roll-up door reduces cooling energy cost
• Variable Frequency Drive system provides Soft Start / Soft Stop
• Insulated reinforced vinyl curtain endures cold temperatures
• Soft bottom with safety edge releases upon impact & auto resets
• Retention guides improve curtain stability & durability
• Aluminum guides with integrated photoeyes, wear strips, and fabric loop seals
• Standard aluminum roll cover & optional operator hood with white finish
• GFCI protected heater cable system in guides, bottom edge, and hoods
• Standard plug-and-play cable system
• Optional air curtain system, heated or non-heated
• Suitable for applications up to 13′ wide and 18’6″ high

Door Size – 1 Insulated vinyl curtain – nom. 1 ⁄2″ thick – up to 13’W x 18’H

TNR® delivers a basic rubber roll-up door for manually operated dock doors. Its rugged construction can withstand rough environments, such as dirt, dust, rain, and snow.

Model HDD Overview

The total value of having a proven, rugged TNR rubber door is evident when it withstands and endures the most demanding workplaces. Ideal for distribution, commercial, and manufacturing applications.

Key Product Highlights:

• Reliable and consistent door operation and impact release performance; no guide gap maintenance is required.
• Suitable for applications up to 10 feet wide and 12 feet high.
• In-board spring assembly with 25,000 cycle rating.
• A sleek profile with easy installation, reduced clearances, and minimal maintenance.
• Manual Chain Hoist, 4.5:1: fast and easy operation.
• HIGH WINDLOAD & PRESSURE DIFFERENTIAL caused by exterior wind exposure & positive pressure work environments

Model HDD

Heavy Duty Dock Door

Door Size – W x H – From 8′ x 8′ up to 10′ x 12′

Hörmann High-Performance Doors

Speed-Guardian™ 5000 Sereis

For building renovation or new construction, The Speed-Guardian™ 5000 Series, with its low-profile guide tracks and design, fits into existing building renovation or new construction plans.

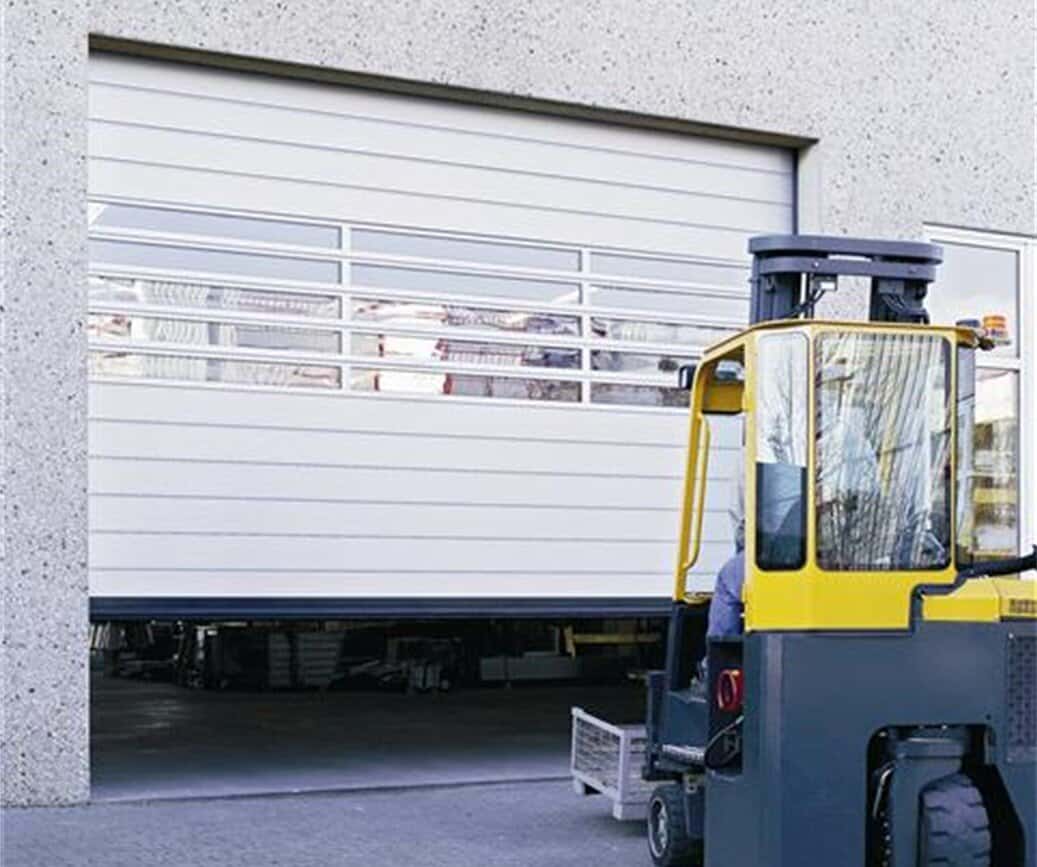

Speed-Guardian™ 5000 LH 42

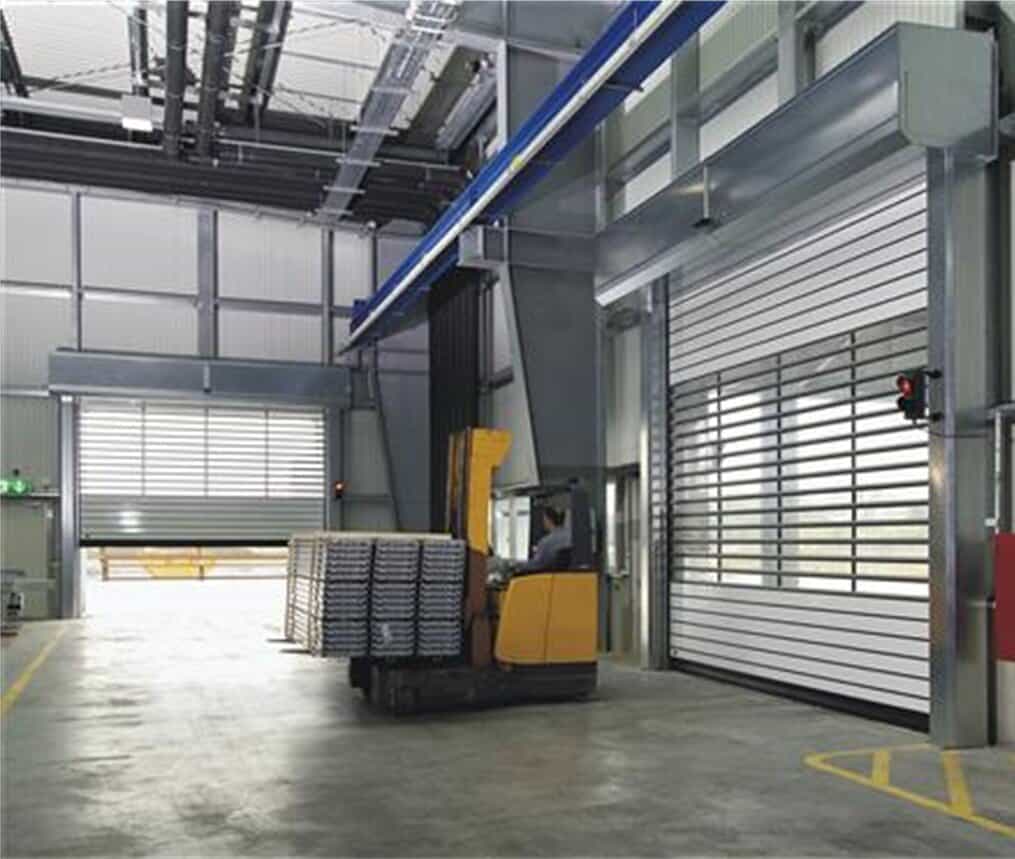

Speed-Guardian™ 5000 C CV 42
