Improve Safety At The Loading Dock With Nordock Vehicle Restraints

NORDOCK® offers a full line-up of premium impact and non-impact vehicle restraints designed to deliver superior performance and a safe loading environment. Easy to install and simple to operate, NORDOCK® vehicle restraints provide years of durable, trouble-free operation no matter the conditions.

Nordock Vehicle Restraints

Rear Impact Hook Restraint Models

Nordock’s Rear impact hook restraint models of vehicle restraints improve safety, strength, convenience, and long-term reliability. Rear impact hook restraint models include the AR-10K and AR-20K.

The SMART-HOOK® Series of automatic vehicle restraint is designed to prevent unscheduled departure, trailer creeps, and tip-overs by using a large rotating hook to secure a trailer’s rear impact guard (RIG) with 32,000 lbs. of restraining force and a mounting force over 100,000 lbs.

Nordock Vehicle Restraints, Spectrum Facility Solutions, Phoenix
Smart-Hook® Series AR-10K

AR-10K is a premium automatic vehicle restraint designed to secure trucks at the loading dock by using a large rotating hook to engage a trailer’s rear impact guard (RIG)/ The latest model in the SMART-HOOK® series, the AR-10K delivers trouble-free operation and long-term reliability and increases loading dock safety with the addition of the exclusive POWER-SAFE™ battery reserve system.

Able to supply power to the vehicle restraint in the event of a power outage, the auto-recharging POWER-SAFE™ battery unit grants full operational restraint functions with safety communication lights for up to 24 hours, keeping truck drivers and dock attendants safe, in control, and on schedule.

The low profile housing automatically adjusts to various trailer heights and movements and lowers to 9″ above grade, avoiding potential damage from low-hanging rear impact guards. The restraint is stored above ground level to keep it free of snow, ice, and debris.

Features & Benefits
  • POWER-SAFE™ System Provides Full Power for Over 24 Hours, Allowing Safe Release, Engagement, and Uninterrupted Inside and Outside Communication Lights
  • IP66 Rated Waterproof Motor/Gearbox
  • IMPACT-GUARD™ Superior Design Eliminates Damage Caused by Trailer Impact
  • Upward Biased Housing and Hook Keep Constant Contact with Rear Impact Guard
  • All Functions are Automatically Reset Once Power is Restored
  • Large Rotating Hook Design Prevents Unscheduled Departure, Trailer Creep and Tip Over
  • Patented Direct Drive System Eliminates High Maintenance Clutch, Chain and Brake Components
  • Solid State Control System with Diagnostics
  • Waterproof IP67 Rated Hook Position Sensor Eliminates Failure Prone Mechanical Limit Switches
  • Fault Sensor Alarm Alerts Operator When a Missing or Damaged Rear Impact Guard is Detected
  • Auto-Reversing Hook Avoids Damage from Incoming Truck
  • NEMA 12 Control Panel with Steel Enclosure and Operator Instructions on Hinged Cover
  • Above Ground Storage Provides Easy Dock Clean-Up and Keeps Housing Clear of Snow, Ice and Debris
  • Low-Profile Housing Lowers to 9″ Off Grade Over 32,000 lbs. of Restraining Force and 100,000 lbs. of Mounting Force
  • 5-Year Structural Warranty
  • High Visibility Inside & Outside LED Communication Lights and Signs
  • Dual Zinc Dichromate Finish
Options & Accessories
  •  Integrated LOGI-SMART® Control Systems
  • Cantilever Extension Mounting Bracket
  • Cast-In Wall Mounting Plate
  • Keyed Override Switch
  • Waterproof Panel Enclosures
  • SUPER-COM™ Signal Light System
Smart-Hook® Series AR-20K

AR-20K offers the industry’s most enhanced loading dock safety and performance with its patented NO-PINCH™ Auxiliary Lock System, securing all trailers with rear impact guard obstructions. With maximum mounting force exceeding 100,000 pounds, AR-20K restraints can hold the heaviest trucks while the locking hook virtually secures all rear impact guards over 32,000 pounds of restraining force.

Featuring the patented No-PIinch™ Auxiliary Lock System, Power-Safe™ Battery Reserve System, and patented Impact-Guard™.

  • The patented No-PIinch™ Auxiliary Lock System will not pinch the rear impact guard, providing the highest level of safety in the vehicle restraint industry.
  • The patented Impact-Guard™ front carriage reinforcement increases front carriage strength by over 10 Times competing designs and protects your investment from damage caused by incoming trailers.
  • The Power-Safe™ battery reserve system supplies auto-recharging battery power to the restraint and communication lights for over 24 hours, allowing you to stay safe, engaged, and in control at all times.
Features & Benefits
  • POWER-SAFE™ System Provides Full Power for Over 24 Hours, Allowing Safe Release, Engagement and Uninterrupted Inside and Outside Communication Lights
  • All Functions are Automatically Reset Once Power is Restored
  • Patented NO-PINCH™ Auxiliary Lock System
  • IP66 Rated Waterproof Motor/Gearbox
  • Patented IMPACT-GUARD™ Superior Design Eliminates Damage Caused by Trailer Impact
  • Upward Biased Housing and Hook Keep Constant
  • Contact with Rear Impact Guard
  • Solid State Control System with Diagnostics
  • Over 32,000 lbs. of Restraining Force and 100,000 lbs. of Mounting Force
  • 5-Year Structural Warranty
  • Large Rotating Hook Design Prevents Unscheduled Departure, Trailer Creep and Tip Over
  • Patented Direct Drive System Eliminates High Maintenance Clutch, Chain and Brake Components
  • Waterproof IP67 Rated Hook Position Sensor Eliminates Failure Prone Mechanical Limit Switches
  • Fault Sensor Alarm Alerts Operator When A Missing or Damaged Rear Impact Guard is Detected
  • Auto-Reversing Hook Avoids Damage from Incoming Truck
  • NEMA 12 Control Panel with Steel Enclosure and Operator Instructions on Hinged Cover
  • Above Ground Storage Provides Easy Dock Clean-Up and Keeps Housing Clear of Snow, Ice and Debris
  • Low-Profile Housing Lowers to 9” Off Grade
  • Dual Zinc Dichromate Finish
Options & Accessories
  • Integrated LOGI-SMART® Control Systems
  • Cantilever Extension Mounting Bracket
  • Watertight Panel Enclosures
  • Cast-In Wall Mounting Plate
  • Keyed Override Switch
  • SUPER-COM™ Signal Light System
Nordock Safety Equipment Spectrum Facility Solutions, Phoenx, AZ
Non Impact Hook Restraint Models

From manual to automatic, Nordock’s offers a full line-up of premium Non-Impact vehicle restraints designed to deliver superior performance and a safe loading environment. Easy to install and simple to operate, NORDOCK® vehicle restraints provide years of durable, trouble-free operation no matter the conditions.

Nordock Vehicle Restraints, Spectrum Facility Solutions, Phoenix
Manual Restraint

The MTL Model Truck-Lock® Series of Non-impact Manual vehicle restraints improves safety with strength, convenience, and reliability. The MTL Model Non-Impact Manual Truck-Lock® is an affordable manually operated unit designed to secure a truck at the loading dock by engaging the rear impact guard with a large barrier.

The Truck-Lock® Series of non-impact vehicle restraint uses a large barrier to safely engage and secure a trailer’s rear impact guard (RIG) to the loading dock with 32,000 lbs. of restraining force and mounting forces over 100,000 lbs.

Truck-Lock® models MTL-250 and MTL-300 come standard with a barrier-mounted sensor bar that provides positive communication to the operator when the rear impact guard has been safely engaged.

Model MTL-100 Features & Benefits
  • Non-Impact Design
  • Manual Control Bar Actuation
  • Barrier Stores 9” High to Escape Impact from Low Rear Impact Guards
  • Barrier Automatically Adjusts to Truck Movement During Loading
  • Vertical Locking Hook Secures Virtually all Rear Impact Guards with in Excess of 32,000 lb. Restraining Force
  • Easy to Install and Simple to Operate
  • Inside and Outside Communications Signs
  • All Weather Zinc Plated Components for Superior Durability
  • Vertical Operating Range from 9” to 30“
  • 5-Year Structural Warranty
  • Virtually No Required Maintenance
  • Housing Encloses Working Parts from Inclement Weather and Debris
  • Self Cleaning Guide Track
  • Mounting Force in Excess of 100,000 lbs.
Model MTL-200 Features & Benefits
  • Non-Impact Design
  • Manual Control Bar Actuation
  • Barrier Stores 9” High to Escape Impact from Low Rear Impact Guards
  • Barrier Automatically Adjusts to Truck Movement During Loading
  • Vertical Locking Hook Secures Virtually all Rear Impact Guards with in Excess of 32,000 lb. Restraining Force
  • Easy to Install and Simple to Operate
  • All Weather Zinc Plated Components for Superior Durability
  • Vertical Operating Range from 9” to 30“
  • High Visibility Inside & Outside LED Communication Lights and Signs
  • 5-Year Structural Warranty
  • Virtually No Required Maintenance
  • Housing Encloses Working Parts from Inclement Weather and Debris
  • Self-Cleaning Guide Track
  • Mounting Force in Excess of 100,000 lbs.
Model MTL-230 Features & Benefits
  • Non-Impact Design
  • Manual Control Bar Actuation
  • Interlock Capable NEMA 12 Panel
  • Barrier Stores 9” High to Escape Impact from Low Rear Impact Guards
  • Barrier Automatically Adjusts to Truck Movement During Loading
  • Vertical Locking Hook Secures Virtually All Rear Impact Guards with in Excess of 32,000 lb. Restraining Force
  • Easy to Install and Simple to Operate
  • All Weather Zinc Plated Components for Superior Durability
  • Vertical Operating Range from 9” to 30“
  • High Visibility Inside & Outside LED Communication Lights and Signs
  • 5-Year Structural Warranty
  • Virtually No Required Maintenance
  • Housing Encloses Working Parts from Inclement Weather and Debris
  • Self-Cleaning Guide Track
  • Mounting Force in Excess of 100,000 lbs.
Model MTL-250 Features & Benefits
  • Non-Impact Design
  • Manual Control Bar Actuation
  • Barrier Stores 9” High to Escape Impact from Low Rear Impact Guards
  • Barrier Sensor with Optional Alarm Communicates Positive Lock Position
  • Barrier Automatically Adjusts to Truck Movement During Loading
  • Vertical Locking Hook Secures Virtually all Rear Impact Guards with in Excess of 32,000 lb. Restraining Force
  • Easy to Install and Simple to Operate
  • NEMA 12 Panel Enclosure
  • All Weather Zinc Plated Components for Superior Durability
  • Vertical Operating Range from 9” to 30“
  • High Visibility Inside & Outside LED Communication Lights and Signs
  • 5-Year Structural Warranty
  • Virtually No Required Maintenance
  • Housing Encloses Working Parts from Inclement Weather and Debris
  • Self-Cleaning Guide Track
  • Mounting Force in Excess of 100,000 lbs.
Model MTL-300 Features & Benefits
  • Non-Impact Design
  • Manual Control Bar Actuation
  • Barrier Stores 9” High to Escape Impact from Low Rear Impact Guards
  • Barrier Automatically Adjusts to Truck Movement During Loading
  • Barrier Sensor with Alarm Communicates Positive Lock Position
  • Dock Leveler Interconnect
  • Vertical Locking Hook Secures Virtually All Rear Impact Guards with in Excess of 32,000 lb. Restraining Force
  • Easy to Install and Simple to Operate
  • Solid State Controls
  • NEMA 12 Panel Enclosure
  • All Weather Zinc Plated Components for Superior Durability
  • Vertical Operating Range from 9” to 30“
  • High Visibility Inside & Outside LED Communication Lights and Signs
  • 5-Year Structural Warranty
  • Virtually No Required Maintenance
  • Housing Encloses Working Parts from Inclement Weather and Debris
  • Self-Cleaning Guide Track
  • Mounting Force in Excess of 100,000 lbs.
MTL Options & Accessories
  • Cantilever Extension Mounting Bracket
  • Cast-In Wall Mounting Plate
  • Integrated Control Panel
  • Communication Lights
  • Keyed Override Switch
Nordock Vehicle Restraints, Spectrum Facility Solutions, Phoenix
Automatic Restraint

The ATL Model Non-Impact Truck-Lock® Series of vehicle restraints improves safety with strength, convenience, and reliability.

The ATL model of Truck-Lock® is an automatic unit that activates and stores the spring-loaded Hydra-Float™ barrier via push-button control.
When the barrier is activated, it can safely secure virtually all types of rear impact guards up to 30” above grade, automatically adjusting to trailer movement while maintaining positive contact with the RIG.

Truck-Lock® models ATL-450, ATL-500, and ATL-900 come standard with a barrier-mounted sensor bar that provides positive communication to the operator when the rear impact guard has been safely engaged.

Features & Benefits
  • POWER-SAFE™ System Provides Full Power for Over 24 Hours, Allowing Safe Release, Engagement and Uninterrupted Inside and Outside Communication Lights
  • All Functions are Automatically Reset Once Power is Restored
  • Patented NO-PINCH™ Auxiliary Lock System
  • IP66 Rated Waterproof Motor/Gearbox
  • Patented IMPACT-GUARD™ Superior Design Eliminates Damage Caused by Trailer Impact
  • Upward Biased Housing and Hook Keep Constant
  • Contact with Rear Impact Guard
  • Solid State Control System with Diagnostics
  • Over 32,000 lbs. of Restraining Force and 100,000 lbs. of Mounting Force
  • 5-Year Structural Warranty
  • Large Rotating Hook Design Prevents Unscheduled Departure, Trailer Creep and Tip Over
  • Patented Direct Drive System Eliminates High Maintenance Clutch, Chain and Brake Components
  • Waterproof IP67 Rated Hook Position Sensor Eliminates Failure Prone Mechanical Limit Switches
  • Fault Sensor Alarm Alerts Operator When A Missing or Damaged Rear Impact Guard is Detected
  • Auto-Reversing Hook Avoids Damage from Incoming Truck
  • NEMA 12 Control Panel with Steel Enclosure and Operator Instructions on Hinged Cover
  • Above Ground Storage Provides Easy Dock Clean-Up and Keeps Housing Clear of Snow, Ice and Debris
  • Low-Profile Housing Lowers to 9” Off Grade
  • Dual Zinc Dichromate Finish
Options & Accessories
  • Integrated LOGI-SMART® Control Systems
  • Cantilever Extension Mounting Bracket
  • Watertight Panel Enclosures
  • Cast-In Wall Mounting Plate
  • Keyed Override Switch
  • SUPER-COM™ Signal Light System
Nordock Vehicle Restraints, Spectrum Facility Solutions, Phoenix
Pit-Hook™

The Non-Impact Pit-Hook™ Series recessed vehicle restraint improves safety with strength, convenience, and reliability. The Pit-Hook™ Series of non-impact vehicle restraint is a recessed pit hook that stores underneath a dock pit cavity to offer unobstructed and trouble-free access to hydraulic lift gate trailers and smaller delivery vehicles.

The PH-3000 Model is a premium automatic hydraulic powered unit designed to secure a truck at the loading dock by engaging the rear impact guard with a large hook. With a unique reach and grab functionality and equipped with Hydra-Float™ technology, the PH-3000 leaves no gap between the hook and the trailer. It can easily adjust to trailer movement, eliminating trailer creep and landing gear collapse.

Features & Benefits
  • Non-Impact Vehicle Restraint Allows Unit to Mount Under Dock Pit Away from Debris
  • Design Allows for Easy Snow Removal, Clean Loading Dock Appearance
  • Offers Unobstructed Delivery for Hydraulic Lift Gate Trailers and Smaller Delivery Vehicles
  • Exceeds 35,000 lbs. of Restraining Force
  • Maintains a Tight Hold on the Rear Impact Guard Virtually Eliminating Trailer Creep
  • Helps Eliminate Landing Gear Collapse by Keeping Trailer Tight to Bumpers
  • Working Range of Down to 9″ Above Grade up to 30″ Above Grade
  • NEMA 12 Control Box with PLC Controls
  • Hook Floats with Trailer During Loading
  • High Visibility Inside & Outside LED Communication Lights and Signs
Options & Accessories
  •  NEMA 4 Watertight Enclosure
  • Dock Leveler Stored Interlock
  • LOGI-SMART® Integrated Control Systems
  • Key Override Control
Wheel Restraint Models
Nordock Vehicle Restraints, Spectrum Facility Solutions, Phoenix
Posi-Chock™

MODEL PC-6000 Automatic Vehicle Restraint. The Posi-Chock™ improves safety with strength, convenience, and reliability.

Features & Benefits
  • Large Chock Helps Prevent Unscheduled Departure, Trailer Creep & Tip-over
  • Universal Design is Non-Reliant on Rear Impact Guards & Secures Virtually Any Trailer, Including Trucks With Lift Gates, Step Vans & Low Boys
  • Simple Direct Drive System Eliminates Clutches, Chains or Brakes & Provides Constant Force Against Trailer Wheels
  • Provides Superior Security From Trailer Theft With No Outside Release Mechanism
  • High Visibility Yellow Components For Safety & Provides Positioning Guide For Incoming Trucks
  • Simple, Easy to Understand Controls With High Visibility Inside & Outside LED Communication Lights & Signs
  • Maintenance-Free Design With Available Heat Tracing & Bio-Degradable Fluid Ensures Trouble-Free Performance In All Environments
  • Below Ground Storage Allows Free Access For Easy Snow Removal Without Damage to Restraint
  • Manual Release System In The Event Of Power Failure
Options & Accessories:
  • Integrated LOGI-SMART® Control Systems
  • Biodegradable Fluid
  • Heat Trace Kit
  • Keyed Override Switch
  • LED Lights
Nordock Vehicle Restraints, Spectrum Facility Solutions, Phoenix
Dok-Chock™

Nordock Model DC‐300 Dok-Chock™ vehicle restraint system improves safety and efficiency at the loading dock.

The superior design helps prevent movement and provides synchronized interlock capable communication to truck drivers and dock personnel.

Features & Benefits
  • Robust Aluminum Chock with Positioning Handle
  • PLC Controller with Leveler Interlock System Logic
  • Exclusive Neoprene Bottom Surface Prevents Slippage
  • Inside and Outside LED Communication Lights & Signs
  • Dust Tight Metal Control Panel with Hinged Cover
  • IP67 Rated Waterproof Chock Mounted Tire Sensor
  • 20-Feet of Sensor Cable and Securing Chain with Cover
  • Galvanized Wall Bracket with Storage Sensor
  • Large Forward-Reverse Exterior Truck Driver Sign
  • Easy Installation to 120 Volt Supply
Options & Accessories:
  • Integrated LOGI-SMART® Control Systems
  • Watertight Inside Control Panel Enclosure
  • Keyed Override Switch
  • SUPER‐COM™ Signal Light System
  • Dock Leveler Stored Interlock Switch
Nordock Vehicle Restraints, Spectrum Facility Solutions, Phoenix

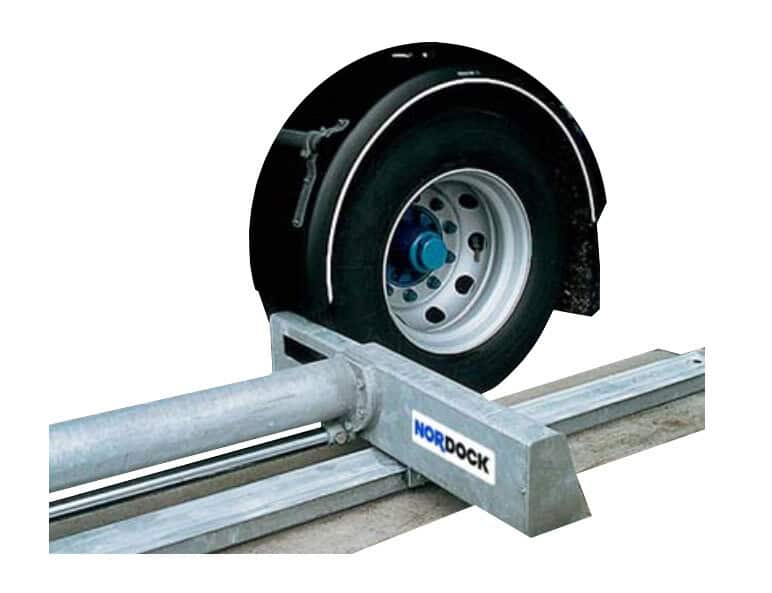

Shur-Lok™

The SHUR-LOK™ MODEL SL-7000 Automatic Vehicle Restraint improves safety with strength, convenience, and reliability.

Features & Benefits
  • Surface Mounted for Ease of Installation & Reliable Operation in All Environments
  • Large Chock Helps Prevent Unscheduled Departure, Trailer Creep & Tipover
  • Universal Design is Non-Reliant on Rear Impact Guards & Secures Virtually Any Trailer, Including Trucks With Lift Gates, Step Vans & Low Boys
  • Simple Direct Drive System Eliminates Clutches, Chains or Brakes & Provides Constant Force Against Trailer Wheels
  • Housing Acts as a Wheel Guide For Proper Trailer Positioning
  • Chock Mounted Sensor Seeks The Rear Most Wheel Then Automatically Extends to Secure Trailer
  • Provides Superior Security From Trailer Theft With No Outside Release Mechanism
  • Corrosion Resistant Zinc Protected Components
  • Simple, Easy to Understand Controls With Inside & Outside Communication Lights & Signs
  • Maintenance-Free Design With Available Environmentally Friendly Bio-Degradable Fluid
Options & Accessories:
  • Integrated LOGI-SMART® Control Systems
  • Biodegradable Fluid
  • Heat Trace Kit
  • Keyed Override Switch
  • LED Lights

Call us at (480) 764-4255

Spectrum Facility Solutions, Commercial Doors – 3017 N Maple, Mesa, AZ 85215

Request Facility Services

    NAME *

    EMAIL *

    PHONE NUMBER *

    CITY or ZIP CODE*

    HOW CAN WE HELP YOU?*

    JOIN OUR TEAM!

    We are always accepting applications to find individuals as devoted and driven as our installation team.

    Apply Today!

    Our Gallery - Spectrum Facility Solutions, Phoenix Arizona
