TNR Model HD-DD 3025

This high-speed, high-performance door system is particularly well suited for applications where high door speeds are required in openings that also experience very high traffic. Vehicle impacts are quickly reset, keeping traffic flowing in these demanding applications.

Eliminating the counterbalance springs makes these TNR rubber doors extremely reliable in high-cycle environments.

Model HD-DD 3025

Chain Drive System

Features and Benefits:

• The HD SERIES chain drive model HD-CD 3025 uses a high-performance helical gearhead operator and chain drive to open the door at up to 24 inches per second.
• A programmable PLC and VFD control this drive system with a soft start and soft stop that provides smooth, quiet operation, reduced wear-and-tear and long life.
• The versatile PLC controller allows quickly adding a wide range of activation and safety devices often required in high-traffic door applications.

Typical Applications

• Parking & Automotive
• Logistics & Transportation

Warranty

The chain drive springless design enables us to include our 5 and 2 warranty, ensuring reliable operation with:

• Five years or 1,000,000 cycles on operators with VFD
• Two years on all other mechanical components
• Two years on electrical components

TNR Model HDP and Model HDLH

The model HDP and model HDLH  high performance rubber doors are the choice model for abusive environments and applications with extreme temperatures. The 1/4” thick black SBR rubber panel has a polyester core weave. It maintains flexibility in temperature from -40°  F to +180º F. A compact, high-efficiency helical gear head operator provides fast and reliable springless operation.

• Sleek profile, easy installation, reduced clearances & minimal maintenance.
• No hinges, cables, pulleys, or tension springs.
• Heavy Duty industrial drive system with soft start / soft stop frequency inverter drive (except on manual doors).
• Features a self-supporting steel frame, Knock-away bottom bar, and thru-beam photoelectric safety sensor.

Designs for extremely low headroom

Patented low headroom and extra low headroom models accommodate as little as 13” of headroom clearance. Our exclusive NEWGEN® guide and CurtainLok™ system allow for panel impact release from the guide tracks.

Warranty:

• Limited lifetime warranty on curtain and NEWGEN® Guide.
• Five years or 1,000,000 cycles on the operator with a frequency drive.
• Two years on all other parts and workmanship.

Model HDP Overview

Introducing a springless Low Headroom rubber roll-up door designed for application in tight overhead spaces in parking door applications for condominiums, office complexes, hotels, public parking, and airports.

Key Product Highlights:

• This high performance rubber door is best suited for any application where headroom clearance is limited to a minimum of 18 inches.
• It has a double-angle steel knock-away bottom bar designed to take full impacts with little or no downtime and is easily reset from the floor without using special tools or parts.
• The Model HDP includes a high-efficiency helical gearhead operator with a multi-function capacity PLC (programmable logic controller) and offers door speeds up to 30 inches per second.

Model HDP

LOW HEADROOM PARKING DOOR

Model HDLH

EXTRA LOW HEADROOM PARKING DOOR

Model HDLH Overview

Introducing a new springless Extra Low Headroom rubber roll-up door designed for application in extremely tight overhead spaces in parking door applications for condominiums, office complexes, hotels, public parking, and airports.

Key Product Highlights:

This high performance rubber door is best suited for any application where headroom clearance is very limited, between 13 and 18 inches.

It has a patented aluminum bottom bar with knock-away pivot arms designed to take full impacts with little or no downtime and is easily reset from the floor without using special tools or parts.

The Model HDLH includes a high-efficiency helical gearhead operator with a multi-function capacity PLC (programmable logic controller) and offers door speeds up to 30 inches per second.

Parking High Performance Doors

Rigid and fabric models for parking decks, office buildings, and automated parking systems.

Hörmann High-Performance Doors

Speed-Guardian™ 5000 Sereis

For building renovation or new construction, The Speed-Guardian™ 5000 Series, with its low-profile guide tracks and design, fits into existing building renovation or new construction plans.

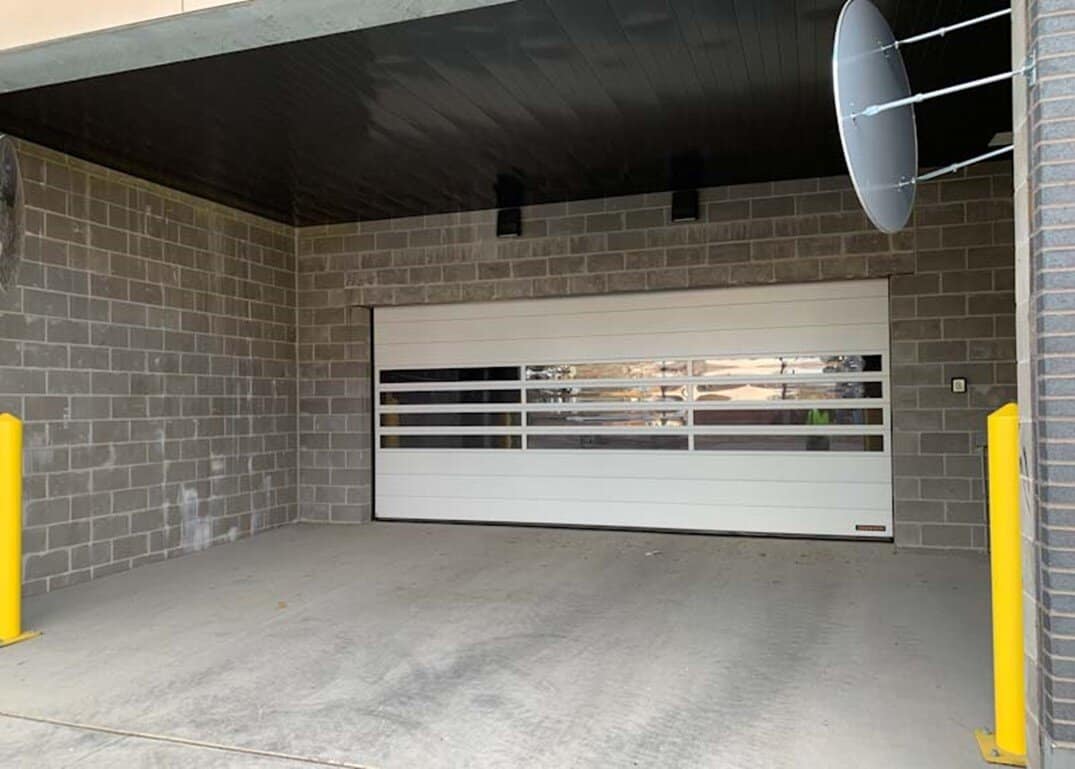

Speed-Guardian™ 5000 LH 42

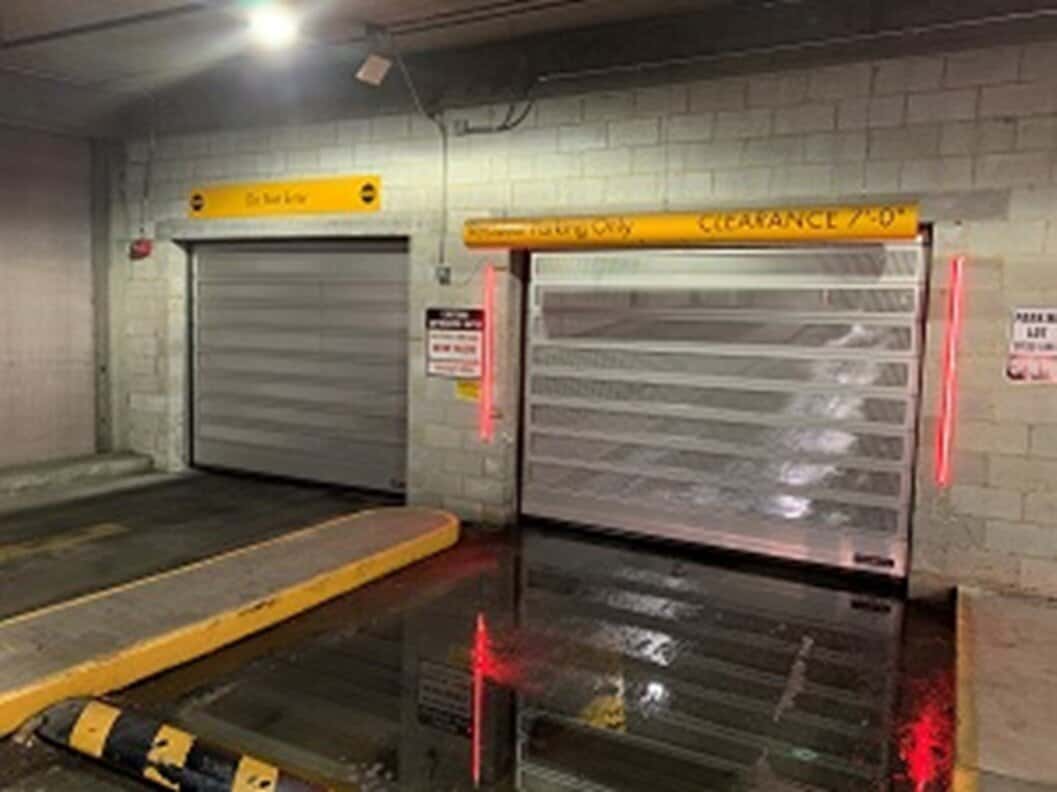

Speed-Guardian™ 5000 C CV 42

Steel Ranger™  9500 LS

In a class above traditional rolling steel doors. With a wind load rating up to 88 mph, direct-drive, springless operation, extremely strong Decotherm® panel, and fast operating speeds, this revolutionary high-performance rolling steel door is the model to choose as an alternative to traditional rolling steel doors in high cycle applications.

The revolutionary maintenance-free design of the 9500 L makes it ideal for parking garages, warehouses, emergency service, and automotive retail facilities.
