Speed-Master 1600 L High Speed Door

Demanding industries such as retail automotive, manufacturing, distribution, transit, airports, etc., that have high cycle door requirements, will benefit from the simple, reliable design of the SpeedMaster 1600 L. Design advantages such as zero moving parts within the guide tracks and directdrive motor, support minimized maintenance and the walk-away dependability busy operations need.

Speed-Master 1600 L High Speed Doors Spectrum Facility Solution

Hormann Speed-Master 1600 L

Demanding High Cycle Fabric Interior / Exterior Locations

Industrial Doors. High cycle applications up to 14’0” w x 16’0” h

For exterior mounting doors, options like a roll and motor cover and a motor/gearbox heater make it possible to accommodate high-traffic external door applications during cold weather for added energy savings compared to conventional roll-up doors.

 Hormann Speed-Master 1600 L Application / Size Range

Speed-Master 1600 L High Speed Doors Spectrum Facility Solution
Compact Guide Tracks with Built-In Light Grid

The Speed-Master® 1600 L19 has guide tracks made of heavy-duty 12 gauge galvanized steel, with dimensions of 7-3/8″ wide x 4-3/8″ projection, enabling the Speed-Master® 1600 L19 to fit into areas with limited clearance. A light grid is built into the guide tracks up to 8’0″ high.

Completely free of coil cords, the light grid provides a thorough wall of protection for personnel and equipment at the doorway compared to other doors that use only photocells. Full perimeter draft seals provide dust and odor containment and general environmental control.

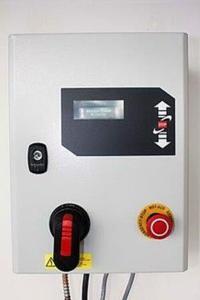

Smart Start™ NXT NEMA 4X Control Box Standard on Doors Over 10 x 10

Smart Start™ NXT NEMA 4X UL 208 to 575 v / 3-phase / 60 Hz voltage input

Optional: Smart Start™ NXT NEMA 4X UL 1-phase available (Up to 10 x 10 only)

Consult factory: Smart Start™ NXT HFCB NEMA 3 Non-UL 1-phase

Cool-Master Speed-Commander1400 SEL, Spectrum Facility, AZ
Application / Size:

Interior or Exterior applications: Up to 14’0″ wide x 16’0″ high or 17’0″ wide x 13’0″ high.

Panel:

Patented, sectional panel design, made of ultra-tough, reinforced, puncture resistant, 90 oz. / sq. yd. Bulldog XT material. Panels are connected with heavy-duty aluminum hinge profiles.

Vision:

Two full-width vision areas made of high-quality PVC are standard. Consult the factory for additional vision areas.

Guide Tracks:

Standard: Heavy-duty, 12 gauge, galvanized steel, 7-3/8″ wide x 4-3/8″ deep with brush draft strips and a light grid built in up to 8’0″ high.

Optional: Stainless steel (see Food Processing Compliant Model).

Direst-Drive Motor

The Compact, self-monitoring direct-drive motor has a patented built-in safety brake and is maintenance-free.

Operating Speed:

Opening: Up to 60″ per second.

Closing: 30″ per second.

Colors:

Black / Blue / Orange / Gray

Custom Panel Prints

Make an impression with our customized panel prints! Logos, pictures, and text may be digitally printed onto our door panels. The images are durable, UV-treated, and waterproof. The maximum image size is 7’0″ wide x 3’0″ high.

Safety Devices:

Standard: 8’0″ high light grid built into guide tracks.

Control Box:

Standard: Smart Start™ NXT NEMA 4X UL 3-phase. (1-phase available)

Food Processing Compliant Model

Stainless steel options are available. Select from the following depending on the application requirements: Roll-tube / hollow shaft, motor cover, and guide tracks. Panel constructed of 1/8″ thick, 90 oz. / sq. yd. USDA-compliant Bulldog XT material and two full-width vision areas made of high quality USDA compliant PVC.
