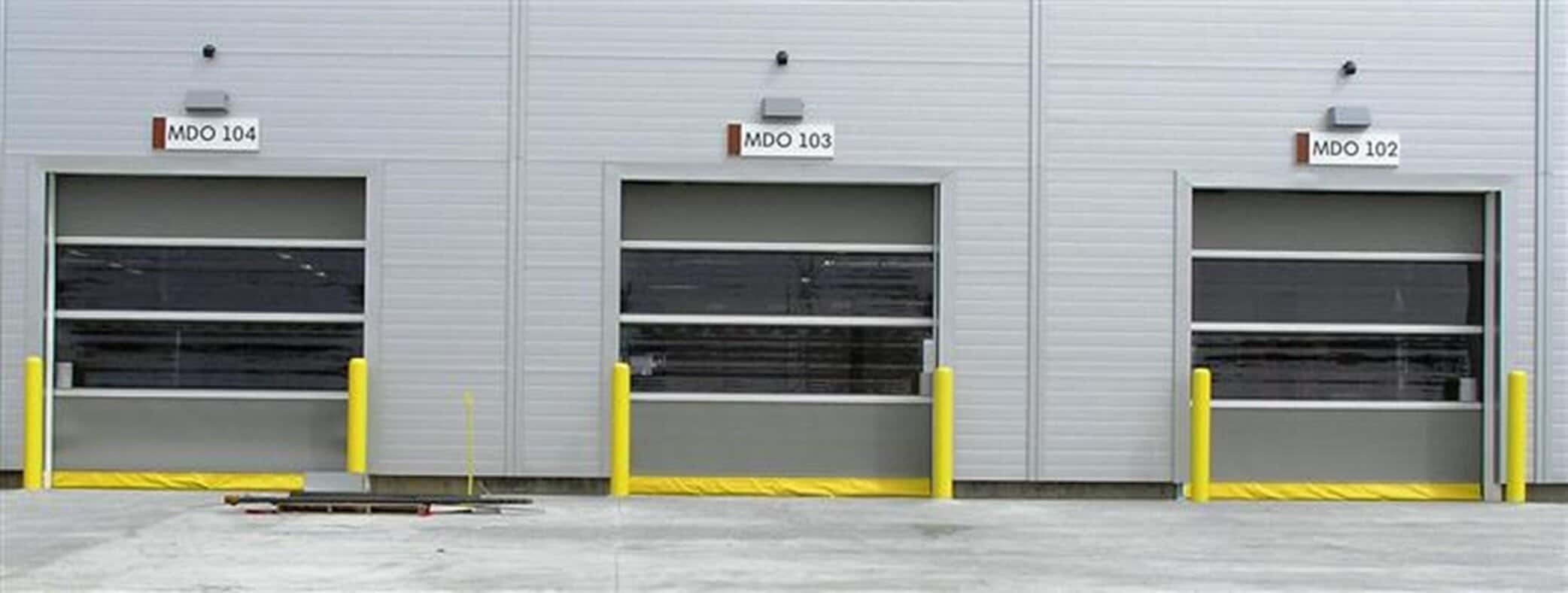

Speed-Master 2600 L High Speed Door

Demanding industries such as manufacturing, paper mills, steel plants, airports, distribution and transit, that have high cycle door requirements, will benefit from the simple and reliable design of the Speed-Master 2600 L.

Speed-Master 2600 L High Speed Doors Spectrum Facility Solution

Hormann Speed-Master 2600 L

Interior and exterior up to 24’0” w x 24’0” h

Patented, sectional panel design, made of ultra tough, reinforced, puncture resistant 90 oz. / sq. yd. Bulldog XT material. Panels are connected with heavy duty aluminum hinge profiles.

 Hormann Speed-Master 2600 L Application / Size Range

Speed-Master 2600 L High Speed Doors Spectrum Facility Solution
Ideal for Demanding Applications

Demanding industries such as manufacturing, paper mills, steel plants, airports, distribution and transit, that have high cycle door requirements, will benefit from the simple and reliable design of the Speed-Master® 2600 L. Design advantages such as zero moving parts within the guide tracks and direct-drive motor, support minimized maintenance for the walk-away dependability busy operations desire.

Built-in Light Grid and Hinged Guide Tracks

Standard on the Speed-Master® 2600 L is a light grid built into the guide tracks up to 8’0″ high. Completely free of coil cords, the light grid provides a thorough wall of protection for personnel and equipment in the doorway, as compared to other doors that use only photocells. The light grid also eliminates the need for a panel reversing edge, which is typically vulnerable to damage, resulting in a reduction in maintenance and downtime. Full perimeter draft seals provide dust and odor containment as well as general environmental control.

Speed-Master 1600 L High Speed Doors Spectrum Facility Solution
Cool-Master Speed-Commander1400 SEL, Spectrum Facility, AZ
Smart Start™ NXT NEMA 4X is Standard

The Speed-Master® 2600 L includes our Smart Start™ NXT NEMA 4X UL control box. The updated control box has a simplified wiring configuration, is more powerful, and has fewer components and cables as compared to the original Smart Start™. A distribution block accepts the activation and protection device wiring; main power cables fee through pre-drilled holes on the bottom of the box where the individual wires, with pre-wired removable terminal blocks, simply plug into the circuit board.

Application / Size:

Exterior or Interior applications: Up to 24’0″ wide x 24’0″ high.

Panel:

Patented, sectional panel design, made of ultra-tough, reinforced, puncture resistant 90 oz. / sq. yd. Bulldog XT material. Panels are connected with heavy duty aluminum hinge profiles.

Vision:

Two, full-width vision areas made of high quality PVC are standard. Consult the factory for additional vision areas.

Guide Tracks:

Standard: Heavy-duty galvanized steel.

Direst-Drive Motor

Compact, self-monitoring direct-drive motor has a patented built-in catch system and is maintenance-free.

Operating Speed:

Opening: Up to 36″ per second.

Closing: 30″ per second.

Colors:

Exterior applications: Black / Blue / Orange / Gray

Custom Panel Prints

Make an impression with our custom panel prints! Logos, pictures, and text may be digitally printed onto our door panels. The images are durable, UV treated, and waterproof. The maximum image size is 7’0″ wide x 3’0″ high.

Safety Devices:

Standard: 8’0″ high light grid built into the guide tracks.

Control Box:

Standard: Smart Start™ NXT NEMA 4X UL 3-phase.
