Air-Powered Dock Levelers

Air-Powered Dock LevelersFor Optimum Loading Dock Performance. NORDOCK® advances loading dock efficiency with patented Next Generation Air technology that is truly revolutionary. AIRDOCK® levelers are easy to install, operated by push button, and come with unmatched strength, standard features, and comprehensive warranties that set a higher standard of excellence

Nordock Hydraulic Dock Levelers, Spectrum Facility Solutions, AZ

Nordock Air-Powered Dock Levelers

AIRDOCK® Super-Duty™

The Super-Duty Series of Air-Powered Dock Levelers is the smart choice for the strongest and most demanding loading docks to receive the best long-term return on investment.

The First 60,000 lb. Capacity Air Powered Dock Leveler with patented ‘NEXT GENERATION AIR’™ Technology

  • NORDOCK® advances loading dock efficiency with patented Next Generation Air technology that is truly revolutionary.
  • AIRDOCK® Super-Duty™ Dock Levelers are the strongest air-powered levelers with a 60,000 lb. capacity.
  • The Super-Duty™ Levelers is easy to install, operated by a push button, and come with unmatched strength.
  • Standard features and comprehensive warranties are designed to set a higher standard of excellence.
Protected Single-Chamber™ Balanced Air Bag Design
  • The reinforced PVC-coated Single-Chamber™ Balanced Air Bag is protected over 99% of the time from environmental contamination.
  • The Single-Chamber™ balanced design reduces material, redundant air chambers, and unwanted seams, eliminating friction.
Pull-Action™ Lifting System

The patented Pull-Action™ lifting system maximizes efficiency by using the entire power of the bag to lift the deck. Increased efficiency means fewer bags, seams, travel, and cycle time resulting in long-term improved performance.

The compact and open design allows for easy inspection of all working components, including the deck, which saves time and improves safety.

Features & Benefits

  • AIR-STOP™ Deck Control
  • Self Forming Pour in Pan
  • Brush & ALL-SEAL™ Weather Seal Systems
  • 18” or 20” Long Lip
  • Safety Barrier Lip
  • Zinc Plated Lifting Pans
  • Safety Yellow Painted Toe Guards
  • Foam Insulated Deck
  • Spray Zinc Deck, Lip & Frame
  • FALL-STOP™ Safety Barrier Gates
  • Dock Lights
  • IMPACT™ Series Steel Spring & Steel Face Dock Bumpers (10-Year Structural Warranty)
  • LOGI-SMART® Integrated Control Systems
  • SMART-HOOK® & TRUCK-LOCK® Vehicle Restraints
  • Wheel Based & PIT-HOOK™ Vehicle Restraints
  • WEARTOUGH® Dock Seals & Shelters
Options & Accessories
  • AIR-STOP™ Deck Control
  • Self Forming Pour in Pan
  • Brush & ALL-SEAL™ Weather Seal Systems
  • 18” or 20” Long Lip
  • Safety Barrier Lip
  • Zinc Plated Lifting Pans
  • Safety Yellow Painted Toe Guards
  • Foam Insulated Deck
  • Spray Zinc Deck, Lip & Frame
  • FALL-STOP™ Safety Barrier Gates
  • Dock Lights
  • IMPACT™ Series Steel Spring & Steel Face Dock Bumpers (10-Year Structural Warranty)
  • LOGI-SMART® Integrated Control Systems
  • SMART-HOOK® & TRUCK-LOCK® Vehicle Restraints
  • Wheel Based & PIT-HOOK™ Vehicle Restraints
  • WEARTOUGH® Dock Seals & Shelters

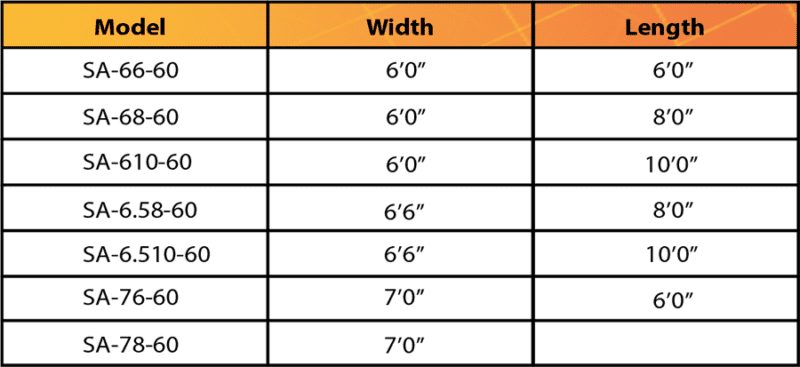

Models and Nominal Dimensions

Air-Powered Dock Levelers, Spectrum Facility Solutions, Phoenix

*Add capacity to model from 25,000 to 45,000 lbs.

Warranty

NORDOCK® guarantees that the AIRDOCK® SUPER-DUTY™ Series of Air-Powered Dock Levelers will perform as described and to the full satisfaction of the purchaser for one year from the date of receipt or NORDOCK® will repair, replace or remove the product and refund the purchase price.

In addition, the front and rear hinge assemblies are guaranteed, under specified guidelines, for a period of twenty years, and the deck lip and frame for Ten-Years.

The lifting assembly, including bag, fan motor, housing, and all fittings, are guaranteed for Five-Years.

PDF Downloads

Literature

Transmittal

Standard Pit Details

Air-Powered Dock Levelers, Spectrum Facility Solutions, Phoenix
Air-Powered Dock Levelers, Spectrum Facility Solutions, Phoenix
Industrial™ Series Air-Powered Dock Levelers

The Industrial™ Series of Air Powered Dock Levelers, with patented ‘Next Generation Air™’ Technology, is the smart choice for the most demanding loading docks to receive the absolute best long term return on investment.

Pull-Action™ Lifting System

The patented Pull-Action™ lifting system maximizes efficiency by using the entire power of the bag to lift the deck. Increased efficiency means fewer bags, seams, travel, and cycle time resulting in long-term improved performance.

The compact and open design allows for easy inspection of all working components, including the deck, which saves time and improves safety.

AIR-STOP™ Deck Control

With this unique option, the dock operator has the ability to arrest the descent of the deck with a push of a button to avoid an obstruction or for safety and convenience in positioning the maintenance supports.

Protected SINGLE-CHAMBER™ Balanced Air Bag Design

The reinforced PVC-coated SINGLE-CHAMBER™ Balanced Air Bag is protected over 99% of the time from environmental contamination.
The SINGLE-CHAMBER™ balanced design reduces material, redundant air chambers, and unwanted seams, eliminating friction.

Features & Benefits

  • Fully Protected, SINGLE-CHAMBER™ Balanced Air Bag Activation System
  • Exclusive Self-Cleaning Lip Lug & Header Plate Design Ensures Maximum Strength
  • Smooth Transition Continuous Fixed Rear Hinge with No Pinch, Trip or Impact Point
  • Integral Lip & Deck Maintenance Supports
  • AUTO-DESCENT Y-LIP™ Fully Yieldable Extension System
  • Additional Center Deck Support
  • Full Width Plated Front & Rear Hinge Rods
  • Six Solid Steel Rear Frame Supports
  • Full Range Telescoping Side Guards
  • Self-Contained Easy Access 120 Volt Fan Motor
  • Single Push Button Activation
  • 16” Lip, (18” & 20” Available)
  • Security Night Locks
  • Two Heavy-Duty Dock Bumpers included
Options & Accessories
  • AIR-STOP™ Deck Control
  • Self-Forming Pour in Pan
  • 18” or 20” Long Lip
  • Safety Barrier Lip
  • Zinc Plated Lifting Pans
  • Safety Yellow Painted Toe Guards
  • Foam Insulated Deck
  • Spray Zinc Deck, Lip & Frame
  • FALL-STOP™ Safety Barrier Gates
  • Dock Lights
  • IMPACT™ Series Steel Spring & Steel Face Dock Bumpers (10-Year Structural Warranty)
  • LOGI-SMART® Integrated Control Systems
  • SMART-HOOK® & TRUCK-LOCK® Vehicle Restraints
  • Wheel Based & PIT-HOOK™ Vehicle Restraints
  • WEARTOUGH® Dock Seals & Shelters
Models and Nominal Dimensions

Air-Powered Dock Levelers, Spectrum Facility Solutions, Phoenix

* Add capacity required Example: AD-68-35

Warranty

Nordock guarantees that the AIRDOCK® INDUSTRIAL™ Series Air-Powered Dock Levelers will perform as described and to the full satisfaction of the purchaser for one year from the date of receipt, or NORDOCK® will repair, replace or remove the product and refund the purchase price.

In addition, the front and rear hinge assemblies are guaranteed, under specified guidelines, for a period of twenty years, and the deck lip and frame for Ten-Years.

The lifting assembly, including bag, fan motor, housing, and all fittings, are guaranteed for Five-Years.

PDF Downloads

Literature

Transmittal

Standard Pit Details

Constructor™ – Air-Powered Dock Levelers

The AIRDOCK® CONSTRUCTOR™ Series of Air Powered Dock Levelers are equipped with all the standard performance features needed to deliver the best return on investment.

An Air Powered Dock Leveler Designed for the Construction Industry with Patented ‘NEXT GENERATION AIR™’ Technology

NORDOCK® advances loading dock efficiency with patented NEXT GENERATION AIR™ technology that is truly revolutionary.
AIRDOCK® CONSTRUCTOR™ Series of Dock Levelers are easy to install, operated by push button, and come with unmatched strength, standard features, and comprehensive warranties that set a higher standard of excellence.

Protected SINGLE-CHAMBER™ Balanced Air Bag Design

The reinforced PVC-coated SINGLE-CHAMBER™ Balanced Air Bag is protected over 99% of the time from environmental contamination.
The SINGLE-CHAMBER™ balanced design reduces material, redundant air chambers, and unwanted seams, eliminating friction.

PULL-ACTION™ Lifting System
  • The patented PULL-ACTION™ lifting system maximizes efficiency by using the entire power of the bag to lift the deck.
  • Increased efficiency means fewer bags, seams, travel and cycle time resulting in long term improved performance.
  • The compact and open design allows for easy inspection of all working components including the deck that saves time and improves safety.

Features & Benefits

  • Fully Protected, SINGLE-CHAMBER™ Balanced Air Bag Activation System
  • Heavy-Duty Piano Style Front Hinge Design
  • Smooth Transition Fixed Rear Hinge with No Pinch, Trip or Impact Point
  • Integral Maintenance Support
  • Dual Side 33% Deck to Beam Weld Pattern
  • Six Solid Steel Rear Frame Supports
  • Full Range Telescoping Side Guards
  • Self-Contained Easy Access 120 Volt Fan Motor
  • Single Push Button Activation
  • 16” Lip, (18” & 20” Available)
  • Security Night Locks
  • Two Heavy-Duty Dock Bumpers Included
  • Grease Fittings in Front Hinge
  • Zinc Plated Hinge Rods
Options & Accessories
  • AIR-STOP™ Deck Control
  • Self Forming Pour in Pan
  • Brush & ALL-SEAL™ Weather Seal Systems
  • 18” or 20” Long Lip
  • Safety Barrier Lip
  • Zinc Plated Lifting Pans
  • Center Deck Support
  • Foam Insulated Deck
  • Spray Zinc Deck, Lip & Frame
  • FALL-STOP™ Safety Barrier Gates
  • Dock Lights
  • IMPACT™ Series Steel Spring & Steel Face Dock Bumpers (10-Year Structural Warranty)
  • LOGI-SMART® Integrated Control Systems
  • SMART-HOOK® & TRUCK-LOCK® Vehicle Restraints
  • Wheel Based & PIT-HOOK™ Vehicle Restraints
  • WEARTOUGH® Dock Seals & Shelters
Models and Nominal Dimensions

Air-Powered Dock Levelers, Spectrum Facility Solutions, Phoenix

* Add capacity to model from 25,000 to 45,000 lbs.

Warranty

NORDOCK® guarantees that the CONSTRUCTOR™ Series Air-Powered Dock Levelers will perform as described and to the full satisfaction of the purchaser for one year from the date of receipt.

Consult your NORDOCK® representative for assistance in choosing the correct capacity and options for your application.

PDF Downloads

Literature

Transmittal

Air-Powered Dock Levelers, Spectrum Facility Solutions, Phoenix
