Nordock Hydraulic Dock Levelers

Nordock hydraulic dock levelers deliver the smoothest transitions from the trailer bed to the loading dock and offer reliable operation with easy-to-use functionality and exceptional performance. Hydraulic dock levelers are available in many models, with load capacity ratings ranging from 25,000 to 160,000 lbs.

Nordock Hydraulic Dock Levelers, Spectrum Facility Solutions, AZ

Nordock Hydraulic Dock Levelers

Nordock Hydraulic Dock Levelers, Spectrum Facility Solutions, AZ
 TLH Retrofit

Faster, More Precise, Safer & The Industry’s Best Retrofit Solution

The TLH 8’ RETROFIT™ from NORDOCK® is the best solution for underperforming docks & replacing existing dock pits. Retrofits into a standard pit (8’ length and 19” depth), which means you no longer must cut a new pit anywhere you have standard-size pit levelers.

Standard hinged-lip levelers can be a challenge with end-loaded trailers. With its telescoping lip, the TLH RETROFIT™ makes loading & unloading cubed-out trailers easy, quick, and damage-free. Unlike vertical storing levelers, the TELESCOPING-LIP™ leveler eliminates the likelihood of a moving forklift impacting the stored leveler & provides additional and valuable floor space between & in front of the dock doors.

TLH Features & Benefits
  • Retrofit Capability Available to Fit into Existing Docks without Recutting the Pit
  • TELESCOPING-LIP™ Eliminates End Load Issues with Precise Lip Control, Avoiding Cargo Damage Forever
  • Continuous Fixed Rear Hinge Provides Smooth Transfer with No Pinch Point
  • Flush Storing Improves Sight lines and Increases Floor Space for Safe Cross Traffic Operation and Staging Area
  • Reduces Energy Loss & Dock Contamination
  • No Run-Off Guards Eliminate Impact and Damage to Forklift Tires and Improves Maneuvering
  • Eliminates “Stuck Truck” – Forklift becoming Stuck between Trailer Bed and Loading Dock
  • Eliminates Costly Installation of Bollards, Stanchions, and Guardrails
  • NEMA 12 Control Panel Enclosure with Operator Instructions Printed on Cover
  • 20” High Laminated Dock Bumpers Included
TLH Options & Accessories
  • Automatic Return to Dock Level
  • Lip Increase Beyond 20”
  • Curb Angle Sets
  • Dock Lights
  • SMART-HOOK® & TRUCK-LOCK® Vehicle Restraints
  • Wheel Based & PIT-HOOK™ Vehicle Restraints
  • LOGI-SMART® Integrated Control System
  • IMPACT™ Series Steel Spring & Steel Face Dock Bumpers (10-Year Structural Warranty)
  • Brush & ALL-SEAL™ Weather Seal Systems
  • WEARTOUGH® Dock Seals & Shelters
  • FALL-STOP™ Safety Barrier Gates
Models and Nominal Dimensions

Nordock Pit Style Dock Levelers, Spectrum Facility Solutions, AZ

*Add capacity required from 30,000 to 80,000 lbs. Example: TLH-78-40.

Specifications:

The TLH RETROFIT™ comes with a standard 20” lip extension on 8’ units and a 12” above/below service range with available options to increase the lip beyond 20”. TLH RETROFIT™ models are available in load capacities of 30,000 to 80,000 lbs.

Warranty:

`10-Year structural and 20-Year hinge warranty is included.

Documents

TLH RETROFIT™ Horizontal TELESCOPING-LIP™ Leveler.pdf

TLH RETROFIT™ Sell Sheet.pdf

Heavy-Duty™ Series Hydraulic Leveler

No compromise construction for optimum performance

The NORDOCK® HEAVY-DUTY™ Series Hydraulic Dock Levelers’ deck plate, lip plate, beam sections, and lugs are constructed of a minimum of 50-55,000 PSI yield material.

Easy one-step push button control

  • The operator presses the control button until the deck is raised and the lip is fully extended.
  • Releasing the button allows the lip to lower onto the truck bed.
  • The operator stores the leveler by pressing the control button until the lip fully retracts.
NH Features & Benefits
  • Patented Self-Cleaning Lip Lug and Header Plate Design (20-Year Warranty)
  • Heavy Duty Regenerative Cylinders with Non-Adjustable Velocity Fuse
  • Continuous Fixed Rear Hinge Provides Easy Transfer & Eliminates Pinch, Trip, or Impact Point (20-Year Warranty)
  • Six Solid Steel Rear Frame Supports
  • Dual Side 33% Beam to Deck Weld Pattern
  • Security Night Locks
  • Dust Tight Control Panel Enclosure with Operator Instructions on Cover
  • Open Frame Design for Easy Pit Cleaning
  • Independent Deck and Lip Maintenance Supports with Lock Out Tag Out Capability
  • Full Operating Range Telescoping Side Guards
  • Zinc Coated Deck and Lip Hinge Rods
  • Additional Center Deck Support
  • High Tensile Lip and Deck Safety Tread Plate
  • Two Laminated Dock Bumpers Included
NH Options & Accessories
  • 18″ or 20″ Long Lip
  • Brush & ALL-SEAL™ Weather Seal Systems
  • Emergency Stop & Lip Extend Control
  • Automatic Return to Dock Level
  • Self Forming Pour in Pans & Curb Angle Sets
  • Dock Lights
  • FALL-STOP™ Safety Barrier Gates
  • SMART-HOOK® & TRUCK-LOCK® Vehicle Restraints
  • Wheel Based & PIT-HOOK™ Vehicle Restraints
  • LOGI-SMART® Integrated Control Systems
  • IMPACT™ Series Steel Spring & Steel Face Dock Bumpers (10-Year Structural Warranty)
  • WEARTOUGH® Dock Seals & Shelters
Models and Nominal Dimensions

Nordock Hydraulic Dock Levelers, Spectrum Facility Solutions, AZ

*Add capacity required from 25,000 to 55,000 Ibs. Example: NH-68-50.

Longer models & special sizes are available to suit existing pits. Consult your NORDOCK® representative for assistance in choosing the correct capacity and options for your application.

Warranty:

NORDOCK® guarantees that the HEAVY-DUTY™ Series Dock Levelers will perform as described to the full satisfaction of the purchaser for one year from the date of receipt, or NORDOCK® will repair, replace or remove the product and refund the purchase price.

In addition, the front and rear hinge assemblies are guaranteed, under specified guidelines, for a period of twenty-years. All NORDOCK® dock levelers are designed to exceed the safety and performance requirements of ANSI MH30.1 – 2007 and, when properly applied, come with a 10-year structural warranty.

PDF Downloads

Literature

Transmittal

Architectural Specs

Standard Pit Details

Nordock Hydraulic Dock Levelers, Spectrum Facility Solutions, AZ
Nordock Hydraulic Dock Levelers, Spectrum Facility Solutions, AZ

Super-Duty™ Hydraulic Leveler

The Nordock Super-Duty™ Series Hydraulic Dock Levelers are the ultimate in strength, convenience, and reliability with full hydraulic powered deck and lip functions controlled by a single push button.

The ultimate heavy-duty dock leveler

Available in 60,000 to 160,000 lb. capacities, Super-Duty Series Hydraulic Dock Levelers’ standard features include full operating range telescoping side guards, fall protection velocity fuse, and a comprehensive warranty.

Hydraulic power for smooth, easy operation

The power unit is a frame-mounted integral assembly, fully tested and oil filled. The motor is an enclosed, non-ventilated type available in all voltages. The hydraulic cylinders are a heavy-duty regenerative design with polished chrome rods, guide bearings, and high-pressure seals. Dual lift cylinders are standard on 80,000 lb. plus capacities.

SD Features & Benefits
  • Exclusive Lip Lug and Header Plate Design Ensures Maximum Strength
  • Heavy-Duty Cylinders with Nonadjustable Velocity Fuses
  • Continuous Rear Hinge Assembly
  • Standard 18″ Long Lip
  • Seven Rear Structural Frame Supports
  • Self-Cleaning Lip Hinge
  • Open Frame Design for Easy Pit Cleaning
  • Integral Maintenance Supports
  • Full Operating Range Telescoping Side Guards
  • Dual Lift Cylinders are Included on 80,000 lb. and Higher Capacities
  • Wide Flange Structural Deck Beams
  • 20-Year Front & Rear Hinge Warranty
SD Options & Accessories
  • 20″ Long Lip
  • Brush & ALL-SEAL™ Weather Seal Systems
  • Automatic Return to Dock Level
  • Emergency Stop Control
  • FALL-STOP™ safety barrier gates
  • Dock lights
  • SMART-HOOK® & TRUCK-LOCK® Vehicle Restraints
  • Wheel Based & PIT-HOOK™ Vehicle Restraints
  • LOGI-SMART® Integrated Control Systems
  • IMPACT™ Series Steel Spring & Steel Face Dock Bumpers (10-Year Structural Warranty)
  • WEARTOUGH® Dock Seals & Shelters
Models and Nominal Dimensions

Nordock Hydraulic Dock Levelers, Spectrum Facility Solutions, AZ

* Add capacity required Example: SD-68-60. Longer models and special size units to fit any existing pit also available.

T Available in 60,000 to 160,000 lbs. capacities and standard nominal sizes of 6 feet wide x 6 feet long to 7 feet wide x 10 feet long. Standard features include full operating range telescoping side guards, fall protection velocity fuse, and a comprehensive warranty.

Warranty:

NORDOCK® guarantees that the SUPER-DUTY™ Series dock levelers will perform as described and to the full satisfaction of the purchaser for one year from the date of receipt or NORDOCK® will repair, replace or remove the product and refund the purchase price.

In addition, 20-Year front & rear hinge warranty. All NORDOCK® dock levelers are designed to exceed the safety and performance requirements of ANSI MH30.1 – 2007 and come with a 10-year structural warranty when properly applied.

PDF Downloads

Literature

Transmittal

Standard Pit Details

Dual-Duty™ Series Dock Levelers

The Dual-Duty™ Series Dock Levelers feature a unitized welded structure with continuous welds at the beam, header plate, and lug connections for maximum strength.

Hydraulic power for smooth, efficient operation

  • The power unit is a frame-mounted integral assembly fully tested and oil-filled.
  • The motor is an enclosed, non-ventilated type available in all voltages.
  • Regenerative hydraulic cylinders are a heavy-duty design with polished chrome rods, guide bearings, and high-pressure seals.
ND Features & Benefits
  • Patented Dual Function Cylinder
  • Six Rear Structural Frame Supports
  • Quick Cycle Time Hydraulics
  • High Tensile Steel Structure
  • Heavy Duty Hydraulics
  • Full Width Rear Hinge Rod
  • Open Frame Design for Easy Pit Cleaning
  • Full Range Telescoping Side Guards
  • Integral Maintenance Supports
  • Below Dock End Load Control
  • 2 Dock Bumpers Included
  • Security Night Locks
  • Center Deck Reinforcement
  • Zinc Plated Hinge Rods
ND Options & Accessories
  • 18” or 20″ Long Lip
  • Brush & ALL-SEAL™ Weather Seal Systems
  • Automatic Return to Dock Level
  • Emergency Stop Control
  • FALL-STOP™ safety barrier gates
  • Dock lights
  • SMART-HOOK® & TRUCK-LOCK® Vehicle Restraints
  • LOGI-SMART® Integrated Control Systems
  • IMPACT™ Series Steel Spring & Steel Face Dock Bumpers (10-Year Structural Warranty)
  • WEARTOUGH® Dock Seals & Shelters
  • Wheel Based & PIT-HOOK™ Vehicle Restraints
Models and Nominal Dimensions

Nordock Hydraulic Dock Levelers, Spectrum Facility Solutions, AZ

Add capacity required from 20,000 to 50,000 lb. Example: ND-66-35

Warranty:

NORDOCK® guarantees the DUAL-DUTY™ Series Dock Levelers will perform as described and to the full satisfaction of the purchaser for one year from the date of receipt.

In addition, structural components are guaranteed for ten years under specified guidelines. All NORDOCK® dock levelers are designed to exceed the safety and performance requirements of ANSI MH30.1 – 2007 and, when properly applied, come with a 10-year structural warranty.

PDF Downloads

Literature

Transmittal

Standard Pit Details

Nordock Hydraulic Dock Levelers, Spectrum Facility Solutions, AZ
Nordock Hydraulic Dock Levelers, Spectrum Facility Solutions, AZ
Constructor™ Series Hydraulic Leveler

The Constructor™ Series Hydraulic Dock Leveler is designed exclusively for the construction industry and is a major breakthrough in strength, reliability, ease of operation, and ease of installation. The cost-effective Constructor™ Series Hydraulic Dock Levelers are available in 30,000 to 45,000 Ib. Capacities, in 5,000 Ib. Increments and standard nominal sizes of 6 and 7 ft. wide x 6 & 8 ft. long.

The open-frame design provides easy cleaning of the pit area and includes our exclusive ‘Guaranteed to Outperform’ Warranty.

Built tough for long, trouble-free operation

The platform is a unitized welded structure with 33% dual side beam to deck weld pattern and continuous welds at the beam, header plate, and hinge tubes. The deck plate, lip plate, beam sections, and lugs are constructed of a minimum of 55,000 PSI yield material.

The fixed rear hinge provides a 4” side-to-side tilt with no pinch point.

Easy one-step push button control

The operator presses the control button until the deck is raised and the lip is fully extended. Releasing the button allows the lip to lower onto the truck bed. The operator stores the leveler by pressing the control button until the lip fully retracts.

CH Features & Benefits
  • Exclusive Lip Lug and Header Plate Design Ensures Maximum Strength
  • Heavy-Duty Cylinders with Nonadjustable Velocity Fuses
  • Continuous Rear Hinge Assembly
  • Standard 18″ Long Lip
  • Seven Rear Structural Frame Supports
  • Self-Cleaning Lip Hinge
  • Open Frame Design for Easy Pit Cleaning
  • Integral Maintenance Supports
  • Full Operating Range Telescoping Side Guards
  • Dual Lift Cylinders are Included on 80,000 lb. and Higher Capacities
  • Wide Flange Structural Deck Beams
  • 20-Year Front & Rear Hinge Warranty
CH Options & Accessories
  • 18″ or 20″ Long Lip
  • Brush & ALL-SEAL™ Weather Seal Systems
  • Self-Forming Pour in Pans & Curb Angle Sets
  • Emergency Stop Control
  • Center Deck Reinforcement (Required when Three Wheel Forklifts are Used)
  • Dock Lights
  • Automatic Return to Dock
  • FALL-STOP™ Safety Barrier Gates
  • IMPACT™ Series Steel Spring & Steel Face Dock Bumpers (10-Year Structural Warranty)
  • SMART-HOOK® & TRUCK-LOCK® Vehicle Restraints
  • Wheel Based & PIT-HOOK™ Vehicle Restraints
  • LOGI-SMART® Integrated Control Systems
  • WEARTOUGH® Dock Seals & Shelters
Models and Nominal Dimensions

Nordock Hydraulic Dock Levelers, Spectrum Facility Solutions, AZ

* Add capacity required from 30,000 to 45,000 Ibs. Example: CH-68-35.

Consult your NORDOCK® representative for assistance in choosing the correct capacity and options for your application.

Warranty:

NORDOCK® guarantees that the CONSTRUCTOR™ Series dock levelers will perform as described and to the full satisfaction of the purchaser for one year from receipt, or NORDOCK® will repair, replace or remove the product and refund the purchase price.

PDF Downloads

Literature

Transmittal

Standard Pit Details

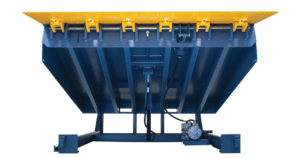

Sliding Barrier Lip Hydraulic Leveler

The Fall-safe™ Series of Hydraulic Dock Levelers are the ultimate in strength and safety. The stay-put barrier lip prevents accidental fall-off when in a stored position.

A powerful Hydraulic Leveler with a Safety Sliding Barrier-Lip

The barrier-lip in the stored position is designed to withstand a 10,000 lb., 4 mph forklift impact without failure.

Available in 30,000, 40,000, 50,000, 60,000 and 80,000 lb. capacities and standard nominal sizes of 6′ wide x 6′ long to 7′ wide x 10′ long. Standard features include full operating range telescoping side guards, a fall protection velocity fuse, and a comprehensive warranty.

SBL Features & Benefits
  • Superior Patented Hinge Design Provides Protection from Accidental Falls off Vacant Docks
  • 6″ High Safety Steel Barrier-Lip Withstands 10,000 lbs. of Impact at 4 MPH
  • Sliding Lip can be Positioned Out of the Way to Allow Full Unobstructed Access to End Loads
  • Patented Self-Cleaning Open Lug & Sliding Front Hinge Design with Chrome Plated Rod
  • Continuous Enclosed Rear Hinge with Zinc Coated Hinge Rod & 20-Year Warranty
  • Heavy-Duty Lift Cylinder with Chrome Rod and Non-Adjustable Velocity Fuse
  • Open Frame Design for Easy Pit Cleaning
  • Full Operating Range Telescoping Side Guards
  • Independent Deck Maintenance Support with Lock Out Tag Out Capability
  • NEMA 12 Dust Tight Control Panel
  • Lip Extend and Emergency Stop Controls
  • Two Laminated Dock Bumpers Included
SBL Options & Accessories
  • Self-Forming Pour in Pans & Curb Angle Sets
  • Brush & ALL-SEAL™ Weather Seal Systems
  • Foam Insulated Deck
  • Spray Zinc Deck, Lip & Frame
  • Loading Dock Lights
  • IMPACT™ Series Steel Spring & Steel Face Dock Bumpers (10-Year Structural Warranty)
  • LOGI-SMART® Integrated Control Systems
  • SMART-HOOK® & TRUCK-LOCK® Vehicle Restraints
  • Wheel Based & PIT-HOOK™ Vehicle Restraints
  • WEARTOUGH® Dock Seals & Shelters
Models and Nominal Dimensions

Nordock Hydraulic Dock Levelers, Spectrum Facility Solutions, AZ

*Add capacity required from 30,000 to 80,000 Ibs. Example: SBL-68-50.

Warranty:

NORDOCK® guarantees that the FALL-SAFE™ Series SBL dock levelers will perform as described and to the full satisfaction of the purchaser for one year from the date of receipt, or NORDOCK® will either repair, replace or remove the product and refund the purchase price.

In addition, the front and rear hinge assemblies are guaranteed, under specified guidelines, for 20-Years.

All NORDOCK® dock levelers are designed to exceed the safety and performance requirements of ANSI MH30.1 – 2007 and, when properly applied, comes with a 10-Year structural warranty and 5-Year Hydraulic

PDF Downloads

Literature

Transmittal

Standard Pit Details

Nordock Hydraulic Dock Levelers, Spectrum Facility Solutions, AZ

Barrier™ Series Hydraulic Leveler

The Barrier™ Series of Hydraulic Dock Levelers are the ultimate in strength and safety. The stay-put barrier lip prevents accidental fall-off when in a stored position.

A Powerful Hydraulic Leveler with a Safety Barrier Lip

  • The NORDOCK® BARRIER™ Series platform is a unitized welded structure with continuous welds at the beam, header plate, and lugs for maximum strength.
  • The deck plate, lip plate, beam sections, and lugs are of minimum 50-55,000 PSI yield material.
  • The beams are formed channel or 6″ structural wide flange with welded side guards to provide additional strength.
  • The continuous rear hinge provides side-to-side tilt with no pinch point.
Hydraulic power for smooth, efficient operation

The BARRIER™ Series power unit is a frame-mounted integral assembly that is fully tested and oil-filled. The motor is an enclosed, non-ventilated type available in all voltages.

Regenerative hydraulic cylinders are a heavy-duty design with polished chrome rods, guide bearings, and high-pressure seals. 80,000 lbs. and higher capacity units have dual lifting cylinders.

NB Features & Benefits
  • STAY-PUT™ Barrier Lip Prevents Accidental Forklift Fall Off in a Stored Position
  • Lip Withstands 10,000 Lb. Forklift Impact at 4 MPH
  • Exclusive Lip Lug and Header Plate Design for Maximum Strength (20-Year Warranty)
  • Heavy-Duty Cylinders with Non-Adjustable Velocity Fuse
  • Continuous Fixed Rear Hinge Provides Easy Transfer & Eliminates Pinch, Trip or Impact Point (20-Year Warranty)
  • Dual Side 33% Beam to Deck Weld Pattern
  • Six Solid Steel Rear Frame Supports
  • Self-Cleaning Lip Hinge
  • Open Frame Design for Easy Pit Cleaning
  • Independent Deck and Lip Maintenance Supports with Lock Out Tag Out Capability
  • Full Operating Range Telescoping Side Guards
  • Zinc Coated Hinge Rods
  • Dust Tight Control Panel Enclosure with Operator Instructions on Cover
  • High Tensile Lip and Deck Safety Tread Plate
  • Two Laminated Dock Bumpers Included
NB Options & Accessories
  • 20” Long Lip
  • Brush & ALL-SEAL™ Weather Seal Systems
  • Automatic Return to Dock Level
  • Weather Tight Controls
  • Dock Lights
  • Curb Angle Sets
  • SMART-HOOK® & TRUCK-LOCK® Vehicle Restraints
  • Wheel Based & PIT-HOOK™ Vehicle Restraints
  • LOGI-SMART® Integrated Control Systems
  • IMPACT™ Series Steel Spring & Steel Face Dock Bumpers (10-Year Structural Warranty)
  • WEARTOUGH® Dock Seals & Shelters
Models and Nominal Dimensions

Nordock Hydraulic Dock Levelers, Spectrum Facility Solutions, AZ

*Add capacity required from 30,000 to 160,000 Ibs. Example: NB-68-60.

Special sizes are available to suit existing pits. Consult your NORDOCK® representative for assistance in choosing the correct capacity and options for your application.

Warranty:

NORDOCK® guarantees that the BARRIER™ Series dock levelers will perform as described and to the full satisfaction of the purchaser for one year from date of receipt or NORDOCK® will either repair, replace or remove the product and refund the purchase price.

In addition, the front and rear hinge assemblies are guaranteed, under specified guidelines, for a period of twenty years.

All NORDOCK® dock levelers are designed to exceed the safety and performance requirements of ANSI MH30.1 – 2007 and, when properly applied, come with a 10-Year structural warranty.

PDF Downloads

Literature

Transmittal

Standard Pit Details

Call us at (480) 764-4255

Spectrum Facility Solutions, Commercial Doors – 3017 N Maple, Mesa, AZ 85215

Request Facility Services

    NAME *

    EMAIL *

    PHONE NUMBER *

    CITY or ZIP CODE*

    HOW CAN WE HELP YOU?*

    JOIN OUR TEAM!

    We are always accepting applications to find individuals as devoted and driven as our installation team.

    Apply Today!

    Our Gallery - Spectrum Facility Solutions, Phoenix Arizona
