Nordock Mechanical Dock Levelers
NORDOCK® Mechanical Dock Levelers are the ultimate in strength, ease of use, and reliability. The INDUSTRIAL™ Series has an exclusive lip lug and header plate design, easy release hold down with dual pawls, and full yielding walkout lip extension for a smooth and efficient operation.
Nordock Mechanical Dock Levelers
Industrial™ – Mechanical Dock Levelers
The NORDOCK® Industrial™ Series Mechanical Dock Levelers are the ultimate in strength, ease of use, and reliability.
Proven performance
The Industrials Mechanical Dock Levelers are equipped with an exclusive lip lug and header plate design, an easy release hold-down with unlimited float, and a full yielding walkout lip extension for a smooth and efficient operation. Standard features include working range side guards, retractable deck stop legs, night locks, and a comprehensive warranty.
Built For The Toughest Loading Dock
The platform is a unitized welded structure with continuous welds at the beam, header plate, and lug connections for maximum strength. The deck plate, lip plate, beam sections, and lugs are constructed of a minimum of 55,000 PSI yield material. A standard center deck beam and welded side guards provide additional deck plate support. The continuous rear hinge provides a 4″ side-to-side tilt with no pinch point.
Features & Benefits:
- Exclusive Self-Cleaning Lip Lug & Header Plate Design Ensures Maximum Strength & Durability (20-Year Warranty
- Easy Transfer Full Width Fixed Rear Hinge with No Pinch Point (20-Year Warranty)
- Smooth & Easy Activation with Walk Down Yieldable Lip Extension
- 33% Deck to Beam Weld Pattern on Both Sides of Beam Provides Superior Strength
- Open Frame Design for Easy Pit Cleaning
- Six Rear Structural Frame Supports
- Lock Out Tag Out Capable Maintenance
- Center Positioned Holdown Eliminates Deck Twist for Level Storage
- Retracting Solid Steel Deck Legs with Below Dock End Load Control
- Front & Rear Hinge Rods are Zinc Coated & Factory Coated with Anti-Seize Lubricant
- Independent Deck and Lip Maintenance Supports with Lock Out Tag Out Capability -Working Range Structural Welded Side Guards
- Additional Center Beam Deck Support for 3-Wheel Lift Trucks
- Two Laminated Dock Bumpers Included
Options & Accessories
- 18” or 20” Long Lip
- Brush & ALL-SEAL™ Weather Seal Systems
- Self-Forming Pour in Pans & Curb Angle Sets
- FALL-STOP™ Safety Barrier Gates
- Full Range Toe Guards
- Dock Lights
- Pit Shim Kits
- SMART-HOOK® & TRUCK-LOCK® Vehicle Restraints
- Wheel Based & PIT-HOOK™ Vehicle Restraints
- WEARTOUGH® Dock Seals & Shelters
- IMPACT™ Series Steel Spring & Steel Face Dock Bumpers (10-Year Structural Warranty)

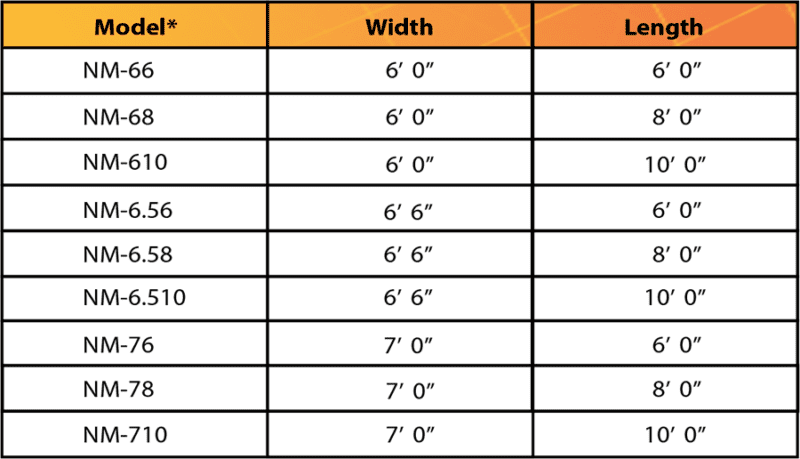

Models and Nominal Dimensions
*Add capacity required from 25,000 to 60,000 Ibs. Example: NM-68-35.
Not all sizes, capacities, and options are available with 60,000 lb. capacity units. Consult your NORDOCK® representative for assistance in choosing the correct capacity and options for your application. Special sizes are available to suit existing pits.
Warranty
NORDOCK® guarantees that the INDUSTRIAL™ Series dock levelers will perform as described and to the full satisfaction of the purchaser for one year from the date of receipt, or NORDOCK® will repair, replace or remove the product and refund the purchase price.
In addition, the front and rear hinge assemblies are guaranteed, under specified guidelines, for a period of twenty years.
All NORDOCK® dock levelers are designed to exceed ANSI requirements and, properly applied, comes with a 10-Year structural warranty.
PDF Downloads
Literature
Transmittal
Standard Pit Details

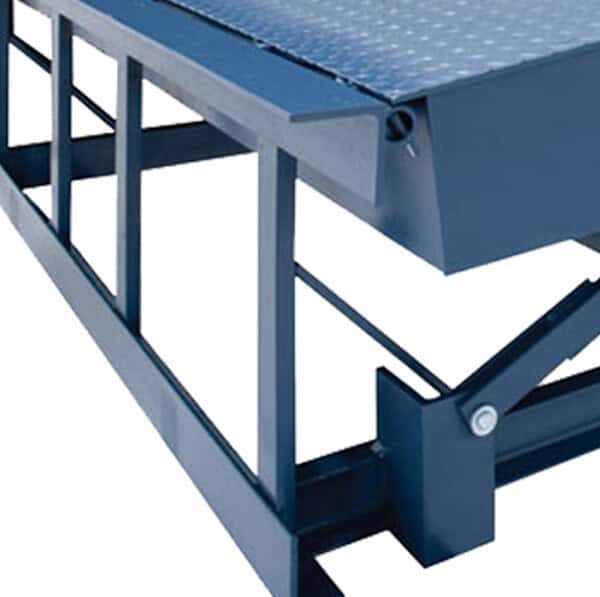

Constructor™ Mechanical Dock Levelers
The Constructor™ Series is an affordable, easy-to-install, low-maintenance mechanical Dock Leveler designed exclusively for the construction industry.
The Cost-Effective Alternative
The NORDOCK® Constructor™ Series of Mechanical Dock Levelers are designed exclusively for the construction industry, offering a quality, affordable dock leveler with capacity ratings from 30,000 – 45,000 Ibs. The leveler’s standard features include welded structural side guards, security night locks, ergonomic walk-down lip extension, and two heavy-duty dock bumpers. The open-frame design provides easy cleaning of the pit area. The Constructor™ Series Levelers also include our exclusive “Guaranteed to Outperform” Warranty.
Built For The Toughest Loading Dock
The platform structure has a 33% dual side beam to deck weld pattern and continuous welds at the header plate and hinge tubes for superior strength. The deck plate, lip plate, beam sections, and lugs are of minimum 50-55,000 PSI yield material. The frame has a minimum of six solid steel rear supports, six hinge connections, and a full-width rear hinge rod.
Easy release activation
The operator releases the holdown at the rear of the platform until the deck is raised and stopped. The operator walks the platform down, extending the lip onto the truck bed. The deck will float up and down with the truck during loading. The standard 16” long lip will extend out and engage a truck bed 12” above and below floor level.
Features & Benefits:
- Smooth and Easy Walk down Lip Extension
- Center Position Holdown Eliminates Deck Twist for Level Storage
- Minimum Five Rear Solid Steel Frame Supports
- Black and Yellow Stripes on Side Skirts
- Full Width Rear Hinge Rod
- Working Range Welded Side Guards
- Fixed Rear Hinge Eliminates Pinch, Trip or Impact Point
- Dual Side 33% Beam-To-Deck Weld Pattern
- Heavy-Duty Spring Counterbalance System
- Lip & Deck Constructed from Minimum 50,000 PSI-Yield Safety Tread Plate
- Open Frame Design for Easy Pit Cleaning
- Dual Pawl Holdown System Reduces Upward Deck Movement During Storage
- Integral Maintenance Support
- Security Night Lock
- Two Dock Bumpers Included
- Grease Fittings on Front Hinge
- Zinc Plated Hinge Rods
Options & Accessories
- 18″ or 20″ Long Lip
- FALL-STOP™ Safety Barrier Gates
- Full Range Telescoping Side Guards
- Center Deck Reinforcement (Required when Three-Wheel Forklifts are Used)
- Brush & ALL-SEAL™ Weather Seal Systems
- Self-Forming Pour in Pans & Curb Angle Sets
- Dock Lights
- SMART-HOOK® & TRUCK-LOCK® Vehicle Restraints
- Wheel Based & PIT-HOOK™ Vehicle Restraints
- WEARTOUGH® Dock Seals & Shelters
- IMPACT™ Series Steel Spring & Steel Face Dock Bumpers (10-Year Structural Warranty)

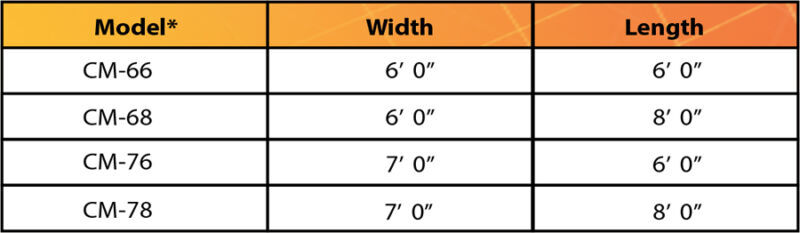

Models and Nominal Dimensions
* Add capacity required from 30,000 to 45,000 lbs. Example: CM-68-35.
Warranty
NORDOCK® guarantees that the CONSTRUCTOR™ Series of Mechanical Dock Levelers will perform as described and to the full satisfaction of the purchaser for one year from the date of receipt. Consult your NORDOCK® representative for assistance in choosing the correct capacity and options for your application.
PDF Downloads
Literature
Transmittal
