Raynor’s FireCoil Fire-rated Rolling Doors
Where safety and fire protection are crucial, choose FireCoil. Raynor FireCoil fire-rated rolling doors are the standard for facilities that require a listed fire door in a rated firewall. Provided with fusible links that automatically release to close the door at 165°F, the door’s descent can also be triggered by smoke and heat detectors, a building’s alarm system, or SS90 fail-safe devices.
FireCoil Fire-rated Rolling Doors
Raynor’s innovative design incorporates governed speed control that delivers optimal performance and functionality. FireCoil fire-rated rolling doors are UL, C-UL, FM, and CSFM-labeled.
FireCoil Features & Options
Where Safety & Fire Protection Are Crucial!
Savings
The state-of-the-art design incorporates automatic resetting of the auto-closing system. All doors can be easily reset with a single-side release, resulting in dramatic savings in testing and resetting costs while minimizing downtime.
Safety
Doors of all sizes meet NFPA 80 requirements. Closing speed is consistently controlled between 6-12” per second, resulting in a more smooth, quiet, and safer descent.
Design Applications:
- Interior openings used to separate different areas within a facility required fire doors to close to prevent fire spread.
- Exterior openings require a fire rating due to the proximity of their structures or combustible materials.
- Buildings are designed for future expansion where current exterior wall openings are to become interior fire openings.
- Interior firewall openings where the door will be normally closed to control varying climatic conditions between two areas.
Color / Finishes
White
Gray
Tan
ArmorBrite™ Powder Coat System
Custom Colors: ArmorBrite: 188 custom powder coated colors available.
Standard Features
Every FireCoil door is built for superior performance and includes the features listed here
Fusible Link
Automatic door closure is initiated by one of three fusible links that melt at 165° Fahrenheit.
Counterbalance System
A torsion-spring-operated system, enclosed in a structural steel barrel, effectively counterbalances the FireCoil fire-rated door for a minimum of 10,000 cycles.
Bottom Bar
Curtain bottoms are reinforced with a minimum of two steel angles for maximum durability. A bottom astragal is included on all motor-operated doors.
Guides and End Locks
Steel angle guides provide added support for curtain slats. Zinc-plated, malleable cast-iron end locks prevent lateral movement of the curtain slats.
Curtain
All FireCoil door curtains are constructed with heavy-duty steel slats: Flat Slats (UF), Insulated Flat Slats (UI), Large Contour Slats (LL), and Small Contour Slats (US). See the Slat Style Options tab below.
Curtain Hood*
For maximum structural rigidity, curtain hoods feature rolled edges and are formed from 24 gauge, hot-dipped galvanized steel.
*FireCoil hood includes a flame baffle that is activated by a fusible link. Standard on Factory Mutual-approved doors. Optional on UL-approved doors.
Model Options and Upgrades
Smoke Control
A guide with a brush seal (shown) and header seal reduces smoke damage.
Pre-Assembled Rolling Steel Door
Our Raynor pre-assembled rolling steel door option allows for faster and easier installation by having the curtain, barrel, and head plates shipped pre-assembled and in one crate. Ask your Raynor Authorized Dealer how to take advantage of our pre-assembled option.
Locks
In applications where control and access are important, choose from a variety of locking options to help keep your building secure. Locks come in either cylinder or slide-bolt (shown) variations. Slide-bolt locks are standard for push-up operation.
Slat Options
Flat Slats (UF)
Flat slats are ideal when weatherseal is used in the most architecturally pleasing slat profile. Flat slats offer full visual access, multiple glazing options, and wind load resistance in a rolling steel door that fits various opening sizes.
Large Contour Slats (LL)
Available in virtually unlimited widths, large contour slats are typically specified for larger-sized openings.
Small Contour Slats (US)
An excellent choice for smaller opening widths, small contour slats are the best value for opening sizes up to 14’x24′.
Insulated Flat Slats (UI)
They are designed for any application demanding greater thermal efficiency.
Model Details
Brochure
Commercial Rolling & Fire Doors
FireCoil™ Fire-Rated Rolling Doors

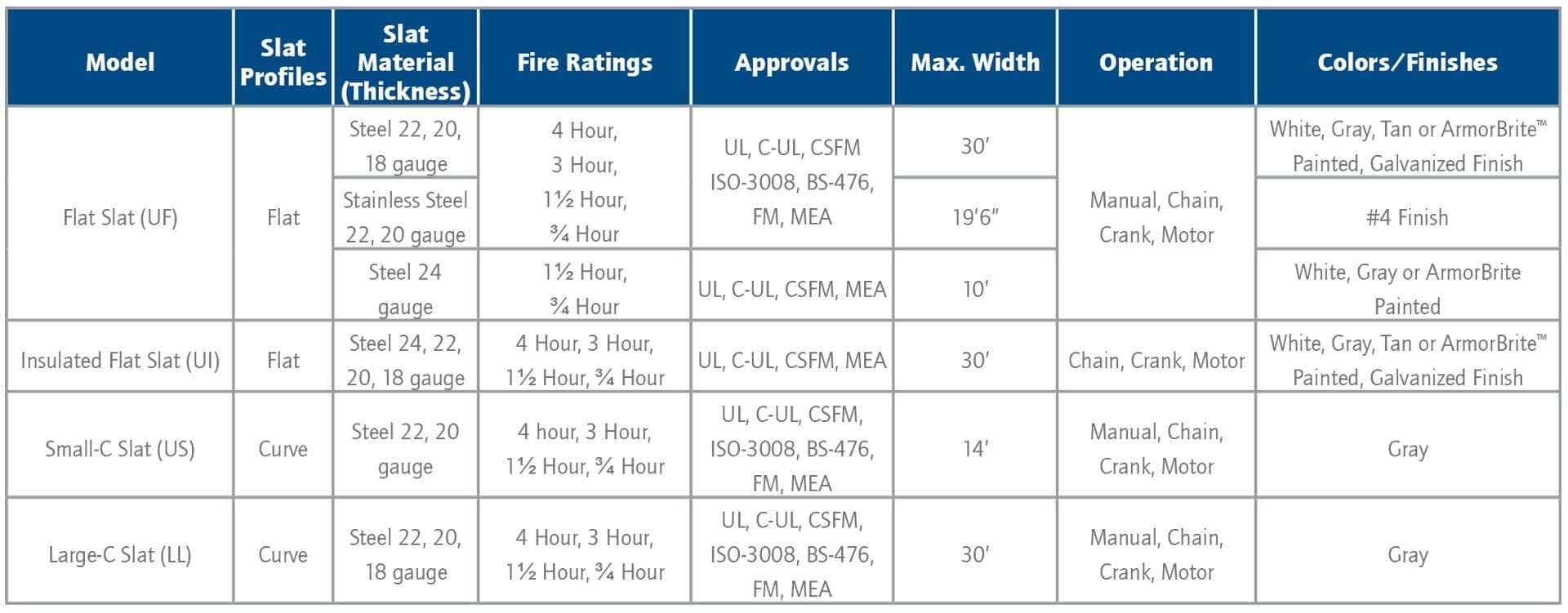

Specifications and Drawings
| CSI Master Format | Microsoft Word Document | PDF Document |
FireCoil Warranty
Door Sections
Raynor warrants the door and its parts for one (1) year against defects in material and artistry.
Hardware & Spring Components
Raynor warrants all hardware and spring components against defects in material and craft for one (1) year.
Under the terms of this limited warranty, for any door components that are found to be defective upon inspection by authorized Raynor personnel, Raynor will, at its option, repair or replace the defective door components. Labor charges for installations or repairs shall be the responsibility of the consumer and must be performed by a qualified installer. The warranty applies only to doors that are professionally installed by a qualified installer.
This warranty extends only to the original purchaser. And the warranty is not transferable.
This warranty does not apply to any damage or deterioration caused by abuse, used paint failure, or failure to provide reasonable and necessary maintenance.
Raynor shall not be liable for any consequential or incidental damages.
ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, ARE HEREBY EXPRESSLY EXCLUDED.
Some states do not allow the exclusion or limitation of consequential or incidental damages, so the above limitation or exclusion may not apply to you.
Claims for defects in material and workmanship covered by this warranty shall be made in writing with proof of purchase to the dealer from whom the product was purchased or call Raynor at 1-800-4-RAYNOR within the warranty period. Raynor may choose to have the product returned for inspection.
This warranty gives you specific legal rights. You may also have other rights, which may vary from state to state.
