Raynor’s ThermaSeal Series
Raynor’s ThermaSeal Sectional Doors, every door is built for superior performance perfect for commercial, industrial, agricultural, or loading dock applications. All Raynor ThermaSeal thermal sectional commercial doors are available with an IECC-compliant option.
Raynor’s ThermaSeal® Sectional Doors
ThermaSeal Series
Thermal Sectional Doors

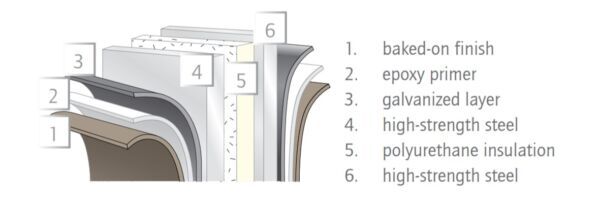

Raynor’s exclusive Neufoam™ insulation process fills 100% of the door’s interior space with our proprietary energy-saving polyurethane insulation to deliver exceptional R-values.
This process also provides superior foam density for excellent structural integrity. Rust-resistant galvanized steel is finished with a two-coat, baked-on paint process for long life. The superior thermal bond between steel and polyurethane Neufoam™ is warranted against delamination for 10 years.
ThermaSeal Series Collection
ThermaSeal TM320
With the benefits of the TM300, plus a heavy-duty 20-gauge exterior, the ThermaSeal TM320 is perfect for meeting job-specific requirements without sacrificing the features you expect from a Raynor sectional door.
Maximum Door Size: 38′ x 24′
Exterior/Interior Steel Thickness: 20 Gauge/26 Gauge
End Stile Steel Thickness: 16 Gauge
R-value of 24.54.
ThermaSeal TM300
TFor maximum thermal protection, choose ThermaSeal. A durable, energy-efficient sectional garage door. Our exclusive process fills 100% of the door’s interior space with our proprietary energy-saving polyurethane NeuFoam™ insulation, to deliver exceptional R-values.
Maximum Door Size: 38′ x 24′
Exterior/Interior Steel Thickness: 26 Gauge/26 Gauge
End Stile Steel Thickness: 16 Gauge
R-value of 24.54.
ThermaSeal TM220
ThermaSeal TM220 is the choice for durability and thermal efficiency in challenging environments. This 2″ thick door has all the features and options you need for a wide range of applications with a heavy-duty, 20-gauge exterior and 18.3 R-value.
Maximum Door Size: 36′ x 24′
Exterior/Interior Steel Thickness: 20 Gauge/26 Gauge
End Stile Steel Thickness: 16 Gauge
R-value of 18.3.
ThermaSeal TM200C
The Raynor TM200C commercial sectional insulated steel door provides the same great quality and durability you get from all ThermaSeal models, with the added benefit of seven colors to choose from. This 2” thick door is a great option for energy efficiency with an R-value of 18.3.
Maximum Door Size: 20′ x 16′
Exterior/Interior Steel Thickness: 26 Gauge/26 Gauge
End Stile Steel Thickness: 20 Gauge
R-value of 18.0.
ThermaSeal TM200
With an R-value of 18.3, this 2″ thick door is a great option for energy efficiency in the ThermaSeal line. With all the standard features you expect from a Raynor ThermaSeal door, the TM200 is a great fit for a variety of applications demanding performance.
Maximum Door Size: 36′ x 24′
Exterior/Interior Steel Thickness: 26 Gauge/26 Gauge
End Stile Steel Thickness: 16 Gauge
R-value of 18.3.
ThermaSeal TM175
With a 16.4 R-value, this benchmark door provides proven Raynor reliability and durability to meet or exceed the requirements of daily use. The TM175 door is offered with the widest selection of quality features and options for the most common product applications.
Maximum Door Size: 36′ x 24′
Exterior/Interior Steel Thickness: 25 Gauge/26 Gauge
End Stile Steel Thickness: 16 Gauge
R-value of 16.4.
Excellent Service from Start to Finish
We offer the most extensive Commercial Garage Doors in the industry: Whether you need a full-view door for trendy retail or cafe, a durable sectional steel door, or an energy-efficient rolling door for a climate-controlled warehouse. Complement your door with Micanan and LiftMaster operators and accessories for your commercial and building design applications.
From the start estimate to the completion of the job, Spectrum Facility Solutions LLC offers the complete commercial service that you deserve and should expect:
Raynor’s Commercial Sectional Door Collection
