Amarr 3502 Aluminum Full View Commercial Door
When light, visibility, and style are as essential as the performance, full-view aluminum sectional doors are the smart choice. With a wide selection of glass, the Amarr 3502 aluminum door creates a sleek, clean, and trendy style in retail, cafes, restaurants, and more.
Amarr 3502 Aluminum MultiView
Beautiful, Unique & Functional
For less rigorous applications, the light-duty Amsrr 3502 is an attractive, affordable choice with stile-and-rail construction and multiple glazing options. Perfect for service and fire stations – a distinctive choice for any building where style and functionality are essential.
Amarr 3502 Features & Options

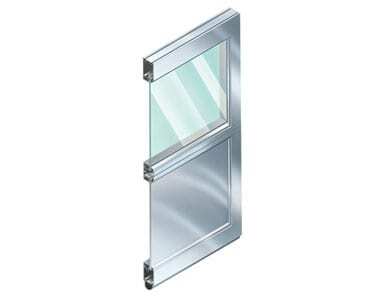

The Amarr 3502 aluminum door is constructed of 2″ thick extruded aluminum rails and stiles and can be fitted with solid aluminum panels or single pane glass.
Clear View
The Amarr 3502 provides a cost-effective option for most aluminum full view project requirements.
Eco-Friendly
The Amarr 3502 provides maximum natural light and visibility to help reduce electric light requirements while enhancing indoor environmental quality.
Maximum Door Size: 12’2” W x 12’1” H
Minimum Door Height: 6′ 0″
Material: Aluminum
Construction Layers: Single
Construction:
- 2″ thick
- Accommodates 1/8″ thick glazing
- Available with solid aluminum panels, perforated panels or louvered panels
- Color: Clear Anodized
- Wind load available
- 5-Year Limited Warranty
Color / Finishes
Available in Clear anodize only.
Clear Anodized
Amarr’s Color Zone
Amarr’s Color Zone is a factory-applied option on most steel garage doors. For the commercial market, Amarr Color Zone creates a unique lasting first impression on our wide selection of industrial doors.
Glass Options
Clear Tint
Obscure
Green Tint
Bronze Tint
Gray Tint
GreyLite
Frost
Snow
Whiteout
Black Ice
Door Construction:
- Medium-Duty Aluminum door
- 2″ thick extruded aluminum rails & stiles
- Available in 1″ width increments
Track: All Amarr doors are available with both 2″ or 3″ track in Standard Lift, High Lift, Vertical Lift, Low Headroom, and Follow the Roof Pitch. Custom track configurations are also available.
Springs: Torsion springs are oil tempered, helical wound, and custom computed for each door for a minimum 10,000 cycle life. Optional springs are available for up to 100,000 cycles.
Standard Hardware: Galvanized steel hinges and track brackets. All rollers have a minimum of 10-ball bearings.
Panel Options
Glass Panel
Amarr 3502 is available in single Aluminum only
Solid Aluminum Panel
Rapid Install Vertical Lift
Wind Load
Made in the USA
Environmental Assurance
Amarr garage doors are CFC, HFC & HCFC free, have zero Ozone Depletion Potential (ODP), zero Global Warming Potential (GWP) and comply with environmental laws and regulations.
Glazing Options
Amarr 3502 is not available in ¼” or insulated glass
Single Pane Glazing
| Glazing Options |
Amarr 3552 |
Amarr 3502 |
|---|---|---|
| Glass Thickness | 1/8”, 1/4″, 1/2″ | 1/8”″ |
| DSB Glass – Single, Insulated | ● | Single Only |
| Tempered Glass – Single, Insulated | ● | Single Only |
| Obscure Glass – Single, Insulated | ● | Single Only |
| Low-E Glass – Single, Insulated | ● | Single Only |
| Wire Glass | ● | Not Available |
| Polycarbonate Glazed | ● | ● |
| Acrylic Glazed | ● | ● |
| Aluminum Panel – Single, Insulated | ● | Single Only |
| Custom Glass Options | ● | ● |
Brochures</h6
Sectional – Amarr 3582 – Download pdf
Aluminum Full View Doors Amarr® 3552 / Amarr® 3502- Download pdf
Warranty
Commercial Sectional Warranty – Download pdf
