Amarr 3552 Aluminum Full View Commercial Door

When light, visibility, and style are as essential as the performance, Amarr 3552 Aluminum Full View is the smart choice. Modern Glass Aluminum garage doors can also partition interior spaces when you need maximum viewing area, easy access, and a clean, modern look. Or, use the unique door as a patio door to blend your indoor and outdoor dining areas or entertaining spaces.

Amarr 3552 Aluminum Full View

The Perfect Blend of Strength & Beauty

Amsrr 3552 is an attractive, affordable choice with stile-and-rail construction and multiple colors and glazing options. Perfect for service and fire stations – a distinctive choice for any building where style and functionality are essential. Create a clean, unique, and modern style for trendy retail, cafes or restaurants, showrooms, sports complexes, and more.

Amarr 3552 Features & Options

These doors can be mounted stationary or operative as a stylish alternative for al fresco situations.

Eco-Friendly:

The Amarr 3552 provides maximum natural light and visibility to help reduce electric light requirements while enhancing indoor environmental quality.

Maximum Visibility:

The ClearView Aluminum Strut System does not restrict the viewing area while adding strength and durability.

Maximum Door Size: 24’ W x 20’1” H

Minimum Door Height: 6′ 0″

Material: Aluminum

Construction:

Sturdy 2” thick extruded aluminum
Accommodates glazing in 1/8”, 1/4” and 1/2” thicknesses
Available with solid aluminum panels, perforated panels or louvered panels
Optional perforated aluminum and louvered aluminum panels available
Stock colors: Clear Anodized, Anodized Dark Bronze, Anodized Black, White Powder Coat
Available in 26 standard PVDF colors, 21 standard powder coat colors, RAL and custom colors in both PVDF and powder coat
Stile and rail construction secured with 5/16” Through Rods for strength and stability
Available with a variety of glass options and solid aluminum panels
Can be operational or mounted stationary as a chic alternative for al fresco settings
Wind Load available
5-Year Limited Warranty

Color / Finishes

In Stock Finishes

Amarr 3582 Aluminum MultiView Doors, Spectrum Facility Solutions

White

Clear Anodized

Dark Bronze Anodized

Black Anodize

Special Order Finishes

Champagne Anodized

Copper Anodized

Medium Bronze Anodized

Paint – Powder Coat Finishes

White

Bone White

Ivory

Sandstone

Burnt Sun

Sierra Tan

Beige

Light Seawolf Beige

Dove Gray

Slate Gray

Charcoal Gray

Patina Green

Dark Ivy

Hartford Green

Military Blue

Interstate Blue

Colonial Red

Boysenberry

Sage Brown

Quaker Bronze

Super Black

Carnival Red II

Classic Copper

Champagne Pearl

Pewter

Silver

Amarr’s Color Zone

Amarr’s Color Zone is a factory-applied option on most steel garage doors. For the commercial market, Amarr Color Zone creates a unique lasting first impression on our wide selection of industrial doors.

Ribbed Panel Garage Doors, Spectrum Facility Solutions, Phoenix Arizona

Glass Options

Clear Tint

Obscure

Green Tint

Bronze Tint

Gray Tint

Frost

Snow

Whiteout

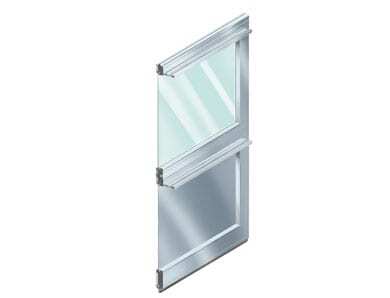

Door Construction

Door Construction:

Door Sections: 2 inches (51 mm) thick.
Rails and stiles extruded from 6063-T6 aluminum to produce a door thickness of 2 inches (51 mm).
Center stiles to be 2-3/4 inches (70 mm).
End stiles to be 3-3/8 inches (86 mm).
Top rails to be 3-7/8 inches (98 mm)
Intermediate rails to be 3-3/4 inches (95 mm) per pair.
Bottom rails to be 3-7/8 inches (98 mm).
All stiles and rails to be secured with 5/16 inch (8 mm) diameter through rods

Track: All Amarr doors are available with both 2″ or 3″ track in Standard Lift, High Lift, Vertical Lift, Low Headroom, and Follow the Roof Pitch. Custom track configurations are also available.

Springs: Torsion springs are oil tempered, helical wound, and custom computed for each door for a minimum 10,000 cycle life. Optional springs are available up to 100,000 cycle life.

Standard Hardware: Galvanized steel hinges and track brackets. All rollers have minimum 10-ball bearings.

Rapidnstall Vertical Lift

Wind Load

Made in the USA

Environmental Assurance

Amarr garage doors are CFC, HFC & HCFC free, have zero Ozone Depletion Potential (ODP), zero Global Warming Potential (GWP) and comply with environmental laws and regulations.

Glazing Options

Glazing Options

Single Pane Glazing

Glazing Options	Amarr 3552	Amarr 3502
Glass Thickness	1/8”, 1/4″, 1/2″	1/8”″
DSB Glass – Single, Insulated	●	Single Only
Tempered Glass – Single, Insulated	●	Single Only
Obscure Glass – Single, Insulated	●	Single Only
Low-E Glass – Single, Insulated	●	Single Only
Wire Glass	●	Not Available
Polycarbonate Glazed	●	●
Acrylic Glazed	●	●
Aluminum Panel – Single, Insulated	●	Single Only
Custom Glass Options	●	●

Documents

Brochures

Sectional – Amarr 3582 – Download pdf

Aluminum Full View Doors Amarr® 3552 / Amarr® 3502- Download pdf

Warranty

Commercial Sectional Warranty – Download pdf

Panel Options

Amarr 3502 Aluminum Full View, Spectrum Facility Solutions

Solid Aluminum Panel

Perforated Panel

Glass Panel

Louvered Panel

From insulated commercial sectional doors constructed of heavy-duty steel to sturdy, lightweight aluminum or insulated overhead doors to rolling steel doors. Find a complete line of high-quality commercial doors to meet your individual needs. Discover energy efficiency, durability, and low maintenance in high-performance overhead doors designed for your fire station garage, storage facility, or other industrial applications.

Excellent Service from Start to Finish

We also offer a complete line of Genie, Micanan, and LiftMaster operators and accessories to complement a large assortment of commercial and building design applications. From the estimate to the completion of the job, Spectrum Facility Solution offers the complete commercial service that you deserve and should expect!
